ประตูอัตโนมัติความเร็วสูงสำหรับภายในอาคาร

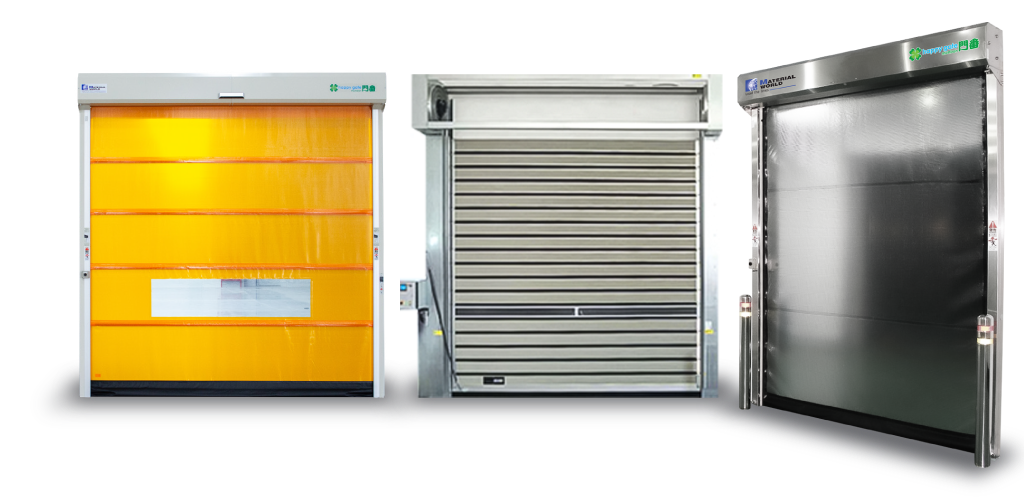

High Speed Door

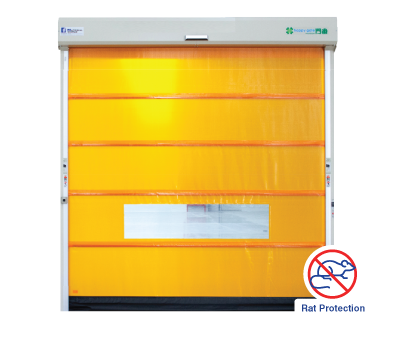

High Speed Door (G SERIES)

Specifications

1. Width (mm)

   600 - 4,500
2. Height (mm)

   600 - 4,500
3. Meterial Body

   Steel Plate, Aluminium Anodize, Stainless Hairline (SUS304)
4. Meterial sheet

   Soft PVC and Polyester

Color

การใช้งานที่เหมาะสม

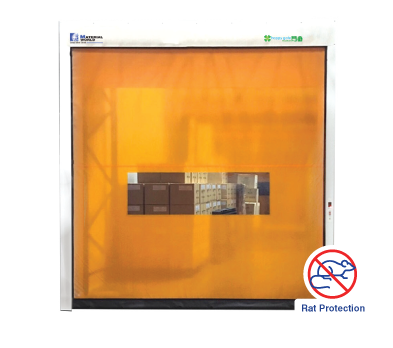

High Speed Door (R Series)

Specifications

1. Width (mm)

   600 - 10,000
2. Height (mm)

   1,000 - 6,000
3. Meterial Body

   Steel Plate, Aluminium Anodize, Stainless Hairline (SUS304)
4. Meterial Sheet

   Soft PVC and Polyester

Color

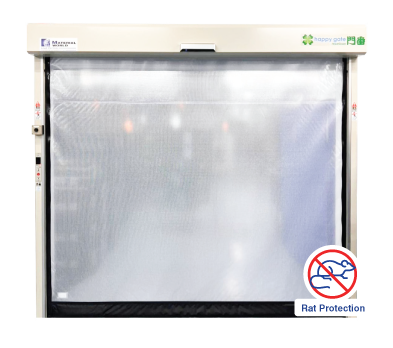

High Speed Door (Stand Alone)

Specifications

1. Width (mm)

   800 - 2,500 mm
2. Height (mm)

   1,800 - 2,500 mm
3. Meterial Body

   Steel Plate, Aluminium Anodize, Stainless Hairline (SUS304)
4. Meterial Sheet

   Soft PVC and Polyester

Color

Feature Detail

การใช้งานที่เหมาะสม

High speed door (Cold Storage)

Specifications

1. Width

   800 - 3,500 mm
2. Height

   1,000 - 3,500 mm
3. Meterial Body

   Stainless Hairline (SUS304)
4. Meterial sheet

   Soft PVC and Polyester

Color

การใช้งานที่เหมาะสม

Feature Details

High Speed Door M09 Model

Specifications

1. Width (mm)

   600 - 1,200
2. Height (mm)

   600 - 2,200
3. Material

   Topframe: Steel , Aliminium: Anodize , Sheet Soft PVC and Polyester
4. Environment

   Double layer of temsile alumininum infilled with PU foam
5. Up Speed

   0.4 - 1.3 m/s
6. Down Speed

   0.15 - 1.3 m/s

Color

Led Lighting

Feature Details

การใช้งานที่เหมาะสม

High Speed Spiral Door

Specifications

1. Dimension (mm)

   Max Width 8,000 / Max Height 9,000
2. Guide rail structure

   Double spiral guide rall
3. Body material

   Door frame : Galvanized steel / Head box : Galvanized steel
4. Door lath

   Double layer of temsile alumininum infilled with PU foam
5. Thickness (mm)

   43 mm / 80 mm
6. Window

   Polycarbonate Plate
7. Opening mode

   Motion sensor, Loop detector Pull Switch, Remonte Control Interlock System
8. Speed

   Opening : 0.8-2.0 m/s (Adjusttable) / Closing : 0.6 m/s (Adjusttable)
9. Power supply

   220V / 380V
10. Safety device

    Photo eyes / Bottom, Safety airbag
11. Applicable temperature

    -35 ˚C -+40 ˚C

Color

Lifting Type

การใช้งานที่เหมาะสม

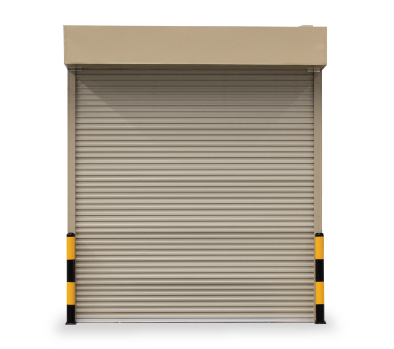

High Speed Rolling Shutter Door

Specifications

1. Width (mm)

   1,500 - 7,000
2. Guide rail structure (mm)

   1,500 - 5,500
3. Material

   Steel
4. Slat (mm)

   Conrugated slat (thickness 0.47 mm)
5. Slat Thickness

   0.47 mm
6. Motor

   DC Motor
7. Power supply

   Single phase 220 volts
8. Speed

   20-25 cm/s (more than 3 times of rolling shutter)
9. Operation Function

   Push button switch / Remote

การใช้งานที่เหมาะสม
