สะพานโหลดสินค้าขนาดเล็ก
Edge of Dock Leveler

Facilitating the loading and unloading goods in warehouses or factories with limited space. A compact loading platform connects the transport vehicle and the loading dock with adjustable height settings to ensure convenient and safe operations.

Edge of Dock Leveler

A mini loading bridge is suitable for loading and unloading goods in warehouses or factories with limited space. It connects between transport trucks and loading platforms, with adjustable height for convenient and safe cargo handling.

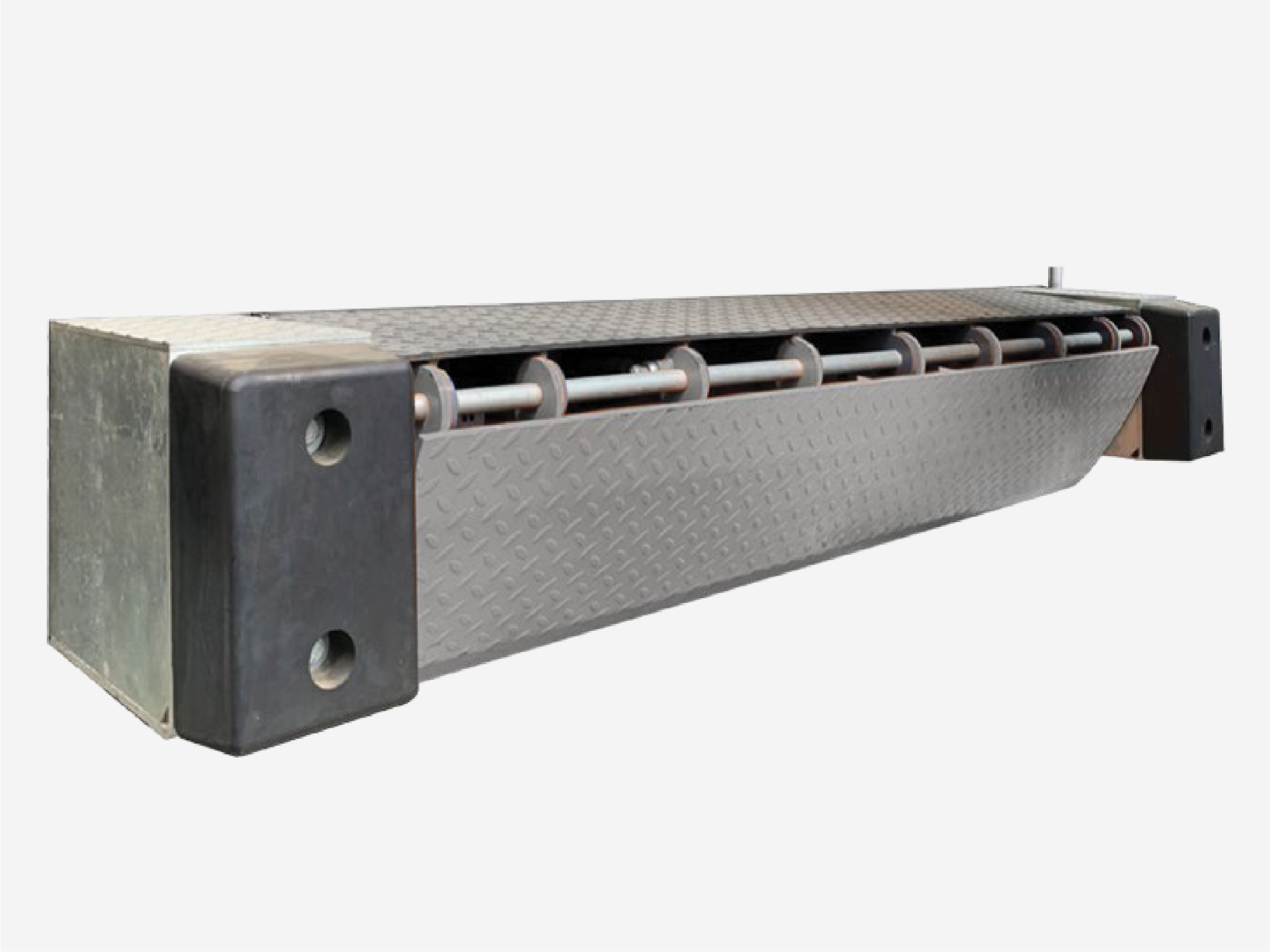

EOD Manual Bridges
EOD Manual Bridges

Specifications

  1. Operation System
    Mechanical / Mechanical
  2. Dimension (mm)
    W 2,000 x L 700 / W 1,830 x L 700
  3. Total Width (mm)
    2,425 / 2,425
  4. Capacity (kg)
    6,000 / 6,000
  5. Working range (mm)
    ± 100 Above / Below Dock

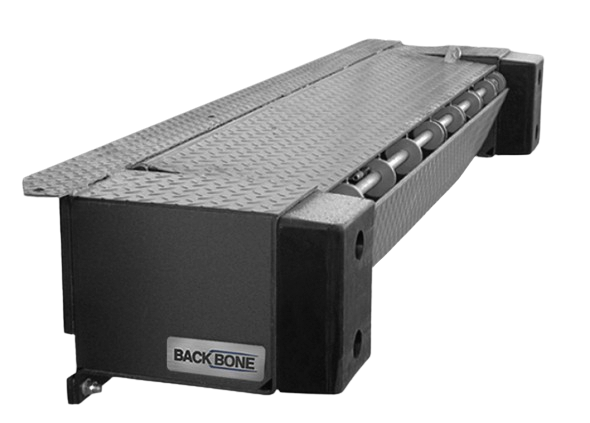

EOD Hydraulic
EOD Hydraulic

Specifications

  1. Operation System
    Hydraulic / Hydraulic
  2. Dimension (mm)
    W 1,800 x L 750 / W 2,000 x L 750
  3. Total Width (mm)
    2,340 / 2,540
  4. Capacity (kg)
    6,000 / 6,000
  5. Working range (mm)
    ± 125 / ± 150

Mechanical Manual Bridges

The manual or hand-pull platform at the front of the open loading dock, can be used with different heights up to 360 mm. It is designed for use with cargo vehicles whose height aligns with the installed loading dock.

Specifications

  1. Dimension (mm)
    W 1,800 x L 2,290 x H 500
  2. Capacity (kg)
    6,000
  3. Lip length (mm)
    500-1,000 (other on request)
Sliding vertical storing
Sliding vertical storing
Stationary vertical storing
Stationary vertical storing

Accessories Option

LED Dock Light
LED Dock Light

Provide clear visibility during loading and unloading operations.

Loading Dock Door Fan
Loading Dock Door Fan

Provide cool air and ventilate the interior of cargo & cargo trailers.

Rubber Bumper
Rubber Bumper

Absorb impact and prevent damage to both the dock and vehicles during loading and unloading activities.

Interested in our products? Contact us for more details and information !
