พัดลมเพดานอุตสาหกรรมขนาดใหญ่
High Volume Low Speed Fan

The HVLS fan designed for cooling and air circulation within factories or warehouses, generating high airflow to create a comfortable working environment for personnel. It helps improve workplace efficiency by ensuring optimal air circulation.

Ensures efficient air circulation and ventilation.
Ensures efficient air circulation and ventilation.
Adjustable fan speed with multiple levels.
Adjustable fan speed with multiple levels.

Backbone Gearless

Backbone Gearless

A high-quality industrial fan that designed for efficient environmental control within a space, this industrial-grade fan offers quiet operation with minimal noise disturbance. It features an intuitive digital control system for ease of use and is equipped with advanced safety functions that comply with international standards.

Backbone Gearless

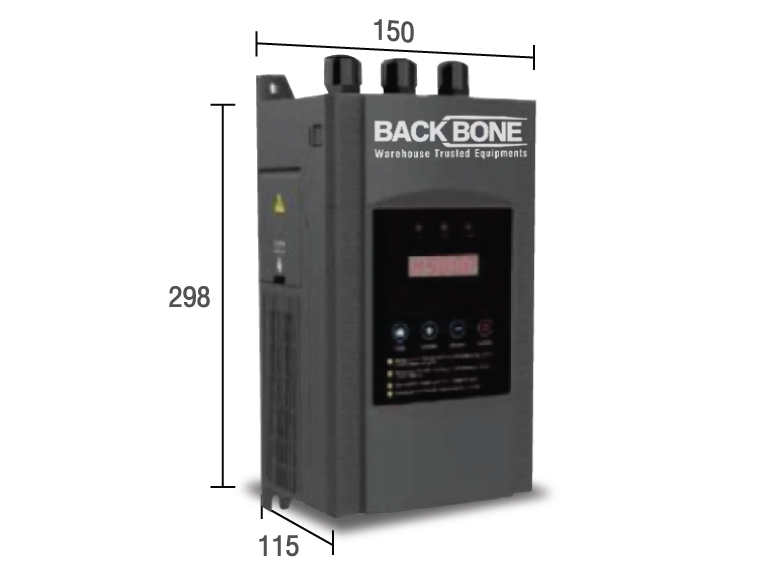

Control Box

size
W : 150 mm
L : 298 mm
D : 115 mm

Control Box
พัดลมอุตสาหกรรมคุณภาพสูง
พัดลมอุตสาหกรรมคุณภาพสูง

Diameter : 20 ft (6.1m) | 24 ft (7.3 m)
Number of Blades : 5 | 5
Motor Power (kW) : 1.2 | 1.2
Noise Level (dBA) : 39 | 39
Installed Fan weight (kg) : 136 | 141
Maximum Speed (RPM) : 60 | 54
Current (A) : 4.5 | 4.5
Air Volume (CMM) :12,500 |13,800
Power Supply : 1P | 220V

พัดลมอุตสาหกรรมคุณภาพสูง
พัดลมอุตสาหกรรมคุณภาพสูง

Diameter : 20 ft (6.1m) | 24 ft (7.3 m)
Number of Blades : 6 | 6
Motor Power (kW) : 1.5 | 1.5
Noise Level (dBA) : 35 | 35
Installed Fan weight (kg) : 115 | 121
Maximum Speed (RPM) : 60 | 55
Current (A) : 4.69 | 4.69
Air Volume (CMM) :13,200 |15,000
Power Supply : 1P | 220V

MacroAir X-Series

MacroAir X-Series
MacroAir X-Series

A high-quality industrial fan that designed for efficient environmental control within a space, this industrial-grade fan offers quiet operation with minimal noise disturbance. It features an intuitive digital control system for ease of use and is equipped with advanced safety functions that comply with international standards.

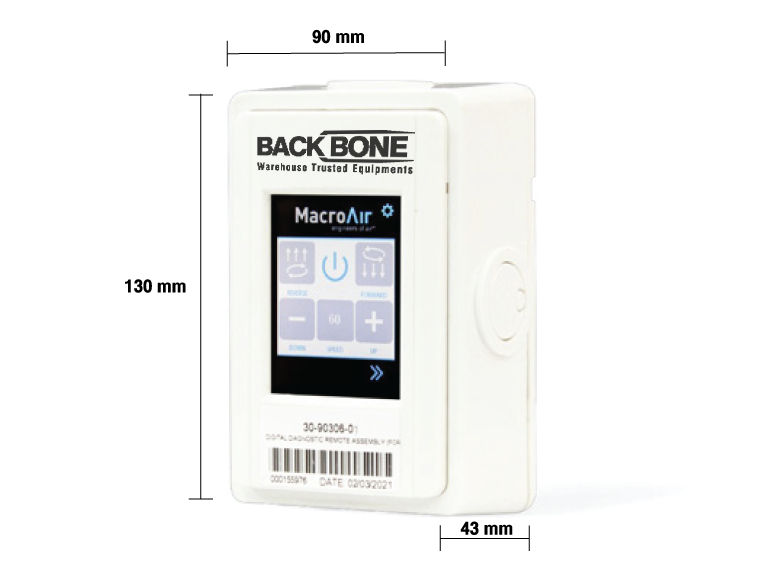

Control Box
Control Box

Size
W : 90 mm
L : 130 mm
D : 43 mm

  1. Diameter
    20 ft (6.1m) | 24 ft (7.3 m)
  2. Number of Blades
    6 | 6
  3. Motor Power (kW)
    1.7 | 1.7
  4. Noise Level (dBA)
    61 | 61
  5. Installed Fan weight (kg)
    109.77 | 117.93
  6. Maximum Speed (rpm)
    75
  7. Current (A)
    13 | 13
  8. Air Volume (CMM)
    18,000 | 20,000
  9. Power Supply
    1P, 220V

Backbone BLDC

Backbone BLDC

The fan features a six-blade design with Airfoil blade construction, engineered to generate optimal airflow and ensure efficient air circulation within the space.

Backbone BLDC
Control Box

size
W : 150 mm
L : 298 mm
D : 115 mm

Control Box
  1. Diameter
    12 ft (3.6 m) |14 ft (4.2 m)
  2. Number of Blades
    6 | 6
  3. Motor Power (kW)
    0.35 | 0.35
  4. Noise Level (dBA)
    38.2 | 38.2
  5. Installed Fan weight (kg)
    38 | 41
  6. Maximum Speed (rpm)
    85 | 66
  7. Current (A)
    1.5 | 1.5
  8. Air Volume (CMM)
    3,100 | 3,800
  9. Power Supply
    1P, 220V
video-img

Backbone Gearless
