Industrial Mobile Fan

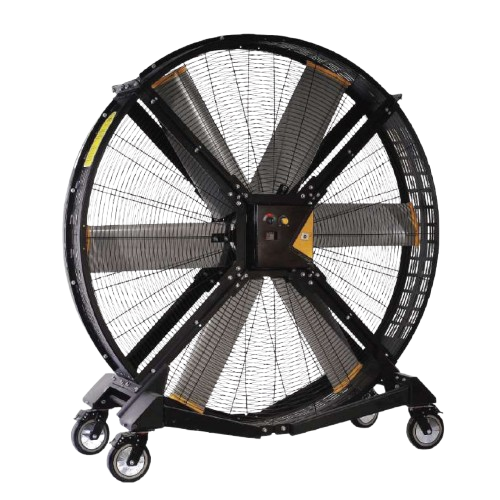

BACKBONE KT SERIES 2M MOBILE FLOOE FAN

KS series are a kind of freely movable fan with large air volume,which are widely used in factories, workshops,
exhibitions, outdoor events and other occasions.
Four casters are designed to move freely to any place that needs cooling and ventilation indoors or outdoors. KS series are a kind of freely movable fan with large air volume,which are widely used in factories, workshops, exhibitions, outdoor events and other occasions. Four casters are designed to move freely to any place that needs cooling and ventilation indoors or outdoors.

Features: High Efficiency

PMSM permanent mognet synchronous motor drives the fan blade, VFD stepless speed regulation,the operation is simple and convenient;

Water Proof

PMSM Gearless motor is more precise, the motor is fully sealed, so that it can meet the IP55 protection standard,to different outdoor environment

Easy Movable&Free installation

The fan has casters that can move freely, which can adapt to the changing requirements of the workplace.The whole fan is modular design, which is flexible to install. Unpack the package .directly connect power use, free man labor &installation.

Free Maintenance

Using electromagnetic induction principle, double bearing transmission, completely sealed, truly achieve motor maintenance free.

Energy Saving

Using PMSM permanent magnet synchronous motor, the motor efficiency is up to 84% by STIEE detection. Reach the national energy efficiency 1st. class standard

Money Saving

The traditional asynchronous motor reducer fan needs to change the gear oil regularly. Using PMSM motor, it can
save more money money in the long term!

1. Free Labor

   Free installation
2. Motor

   PMSM gearless motor
3. Safety

   Protection level IP55, overall waterproof. can run normally in rainy and humid

Technical Specification

Technical Specifications

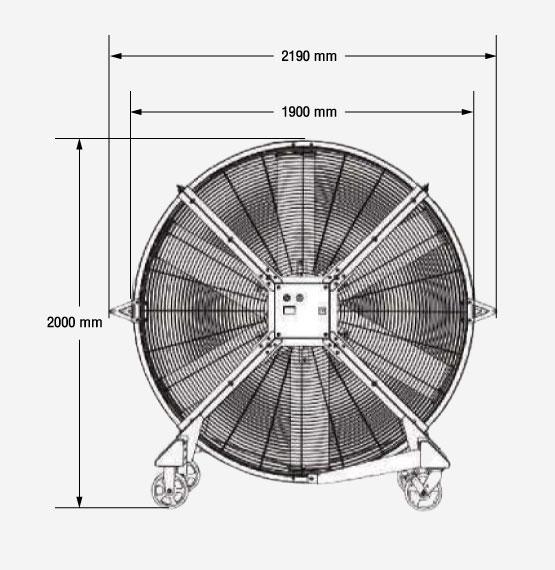

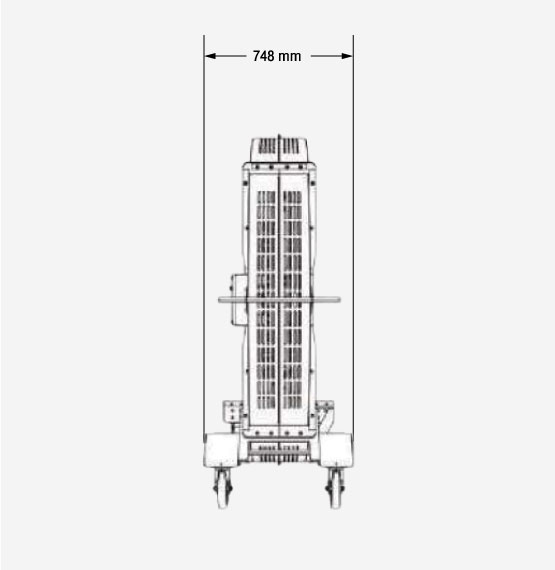

1. Size

   2190 mm × 2060 mm × 750 mm
2. Max Speed

   220r/min
3. Wind Range

   0-36(7m/s-0.9m/s)
4. Motor Drive

   PMSM Motor
5. Motor Power

   0.4KW
6. Voltage

   220V/1P
7. Full-loaded Current

   1.8A
8. Noise Level

   43dBA
9. Weight (G.W.)

   360KG (Gross Weight)

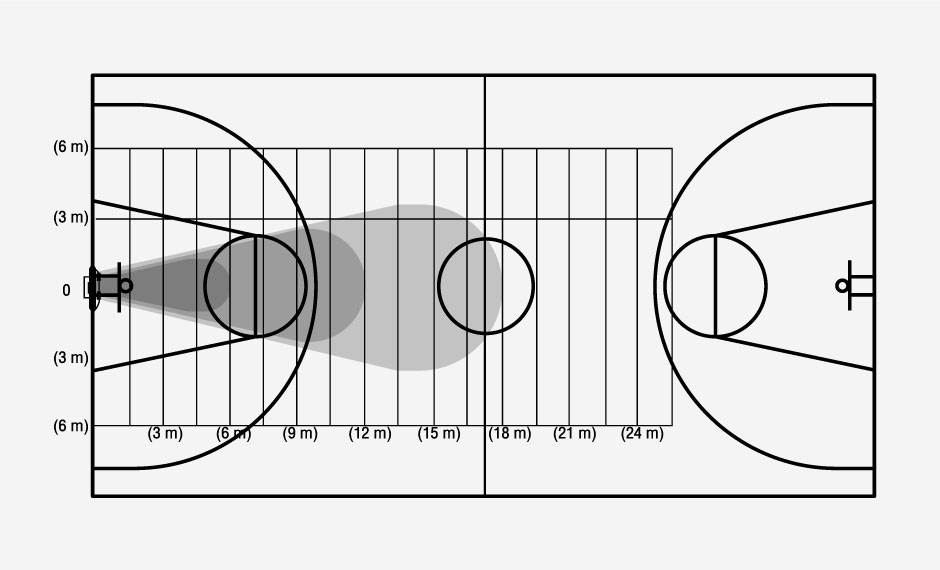

KS series can produce strong wind, the effective air supply distance is more than 18 meters,coverage area can be across the semi solid basketball court. Not only in the large factory workshop channel has a very good performance, it can change position at any time according to the needs of work, so it can also be used in commercial venues and sports centers.

* The distance of air supply exceeds the length of the whole basketbail court, reaching more than 18m; within the distance of 18m, the wind sped ranges from 7m / s to 0.9m/s (the farther the distance is, the lower the wind speed is)
* This dala a meszured under the maxinum speed of the molor, Ifre molon is sleppless speed reguliorion, und speed rungeed rununi.

Designs

1. Airfoils

   Six patented powerful airfoils Winglets eliminated
2. Motor and drive

   PMSM gearless motor efficiency rated IP 55

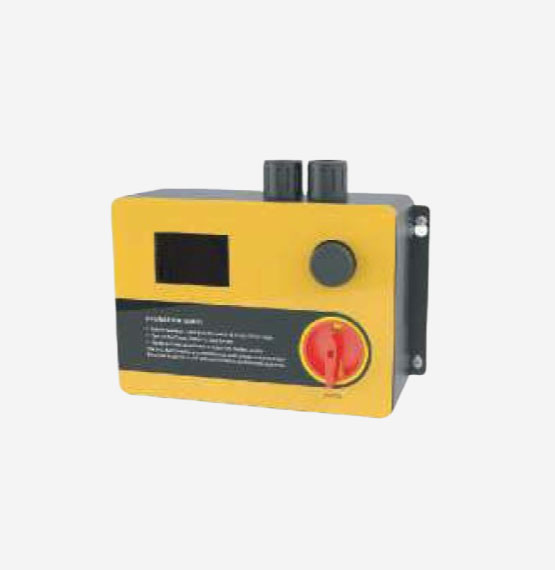

3. Standard Controller

   Rated IP55 On/Off and stepless speed control, LCD Display Operation status real-time monitoring
