Automatic Fire Curtain (AFC) / Smoke Curtain
A life safety system designed to prevent the spread of fire within a building. The AFC consists of rollers covered with fiberglass fabric, housed in a compact casing. In the event of a fire, the system automatically activates when connected to the building’s fire alarm system.
Components
High-Quality Fire Barrier.
Fire resistance for up to 3 hours.
Strong and reliable.
Designed with a compact size.

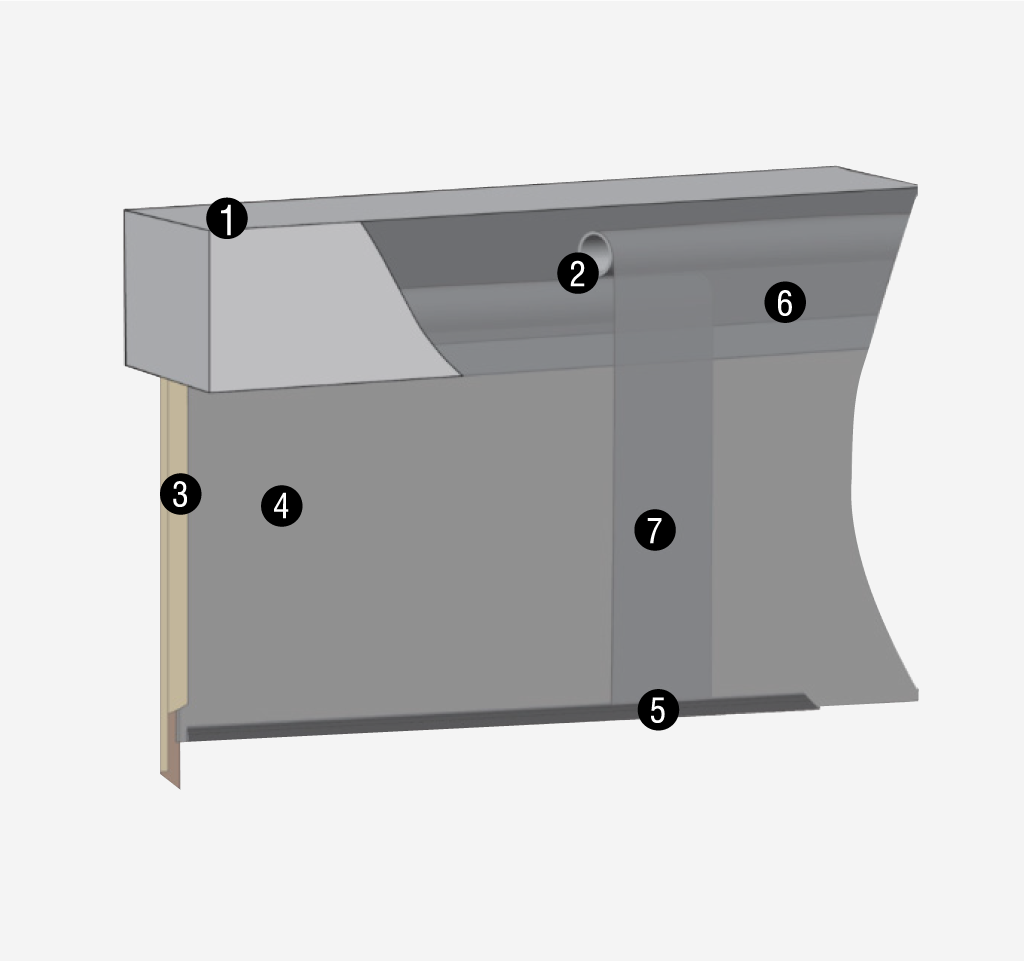

Descriptions
1. HEADBOX
2. ROLLER AND TUBULAR MOTOR
3. GUIDE RAIL
5. FABRIC CURTAIN
Descriptions
6. STEEL BOTTOM BAR
7. FABRIC OVERLAP
8. CONJOINED BOTTOM BAR
Specifications
-
Maximum Width (m)300
-
Maximum Height (m)12 (drop)
-
Head box materialGalvanized steel
-
Side guide materialGalvanized steel
-
Sheet materialFiberglass fabric
-
Sheet ColorSilver grey
-
Thickness (mm)0.71
-
Option SupplyEmergency push buttons
-
Fire rating1 Hour integrity / 3 Hour integrity
Application

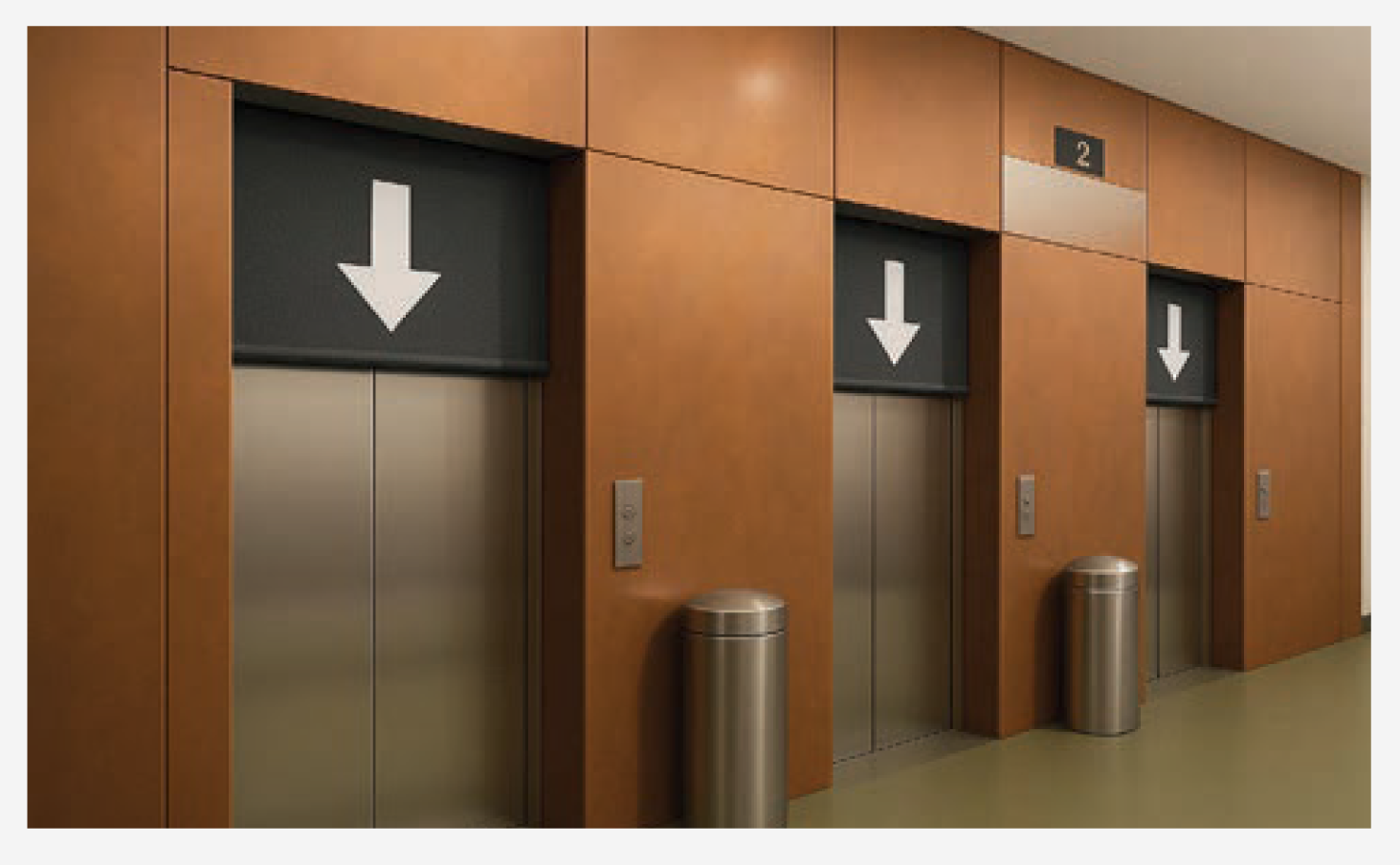

Lift lobby and elevator separation
Although elevator doors may be fire-rated, they cannot fully seal against smoke passage. AFC with a smoke seal serves as an alternative to smoke stop lobbies, providing effective smoke protection at the elevator door.
Fire Compartmentalization
To prevent the spread of fire from one zone to another, AFC plays a crucial role in fire compartmentalization.
Compliance
- BS EN 1634 - 1 : 2014 (Fire Resistance)
- BS EN1634 - 3 : 2014 (Smoke Control Test)
- Fire Curtains Tested to UL 10D
- Fabric Tested to BS 476 Pt 6.8 & Pt 7 Class 0
Suitable Applications
Warehouse
Logistic
Department Store
Factory
Hotel
