อุปกรณ์เสริมขับเคลื่อนด้วยระบบไฟฟ้า

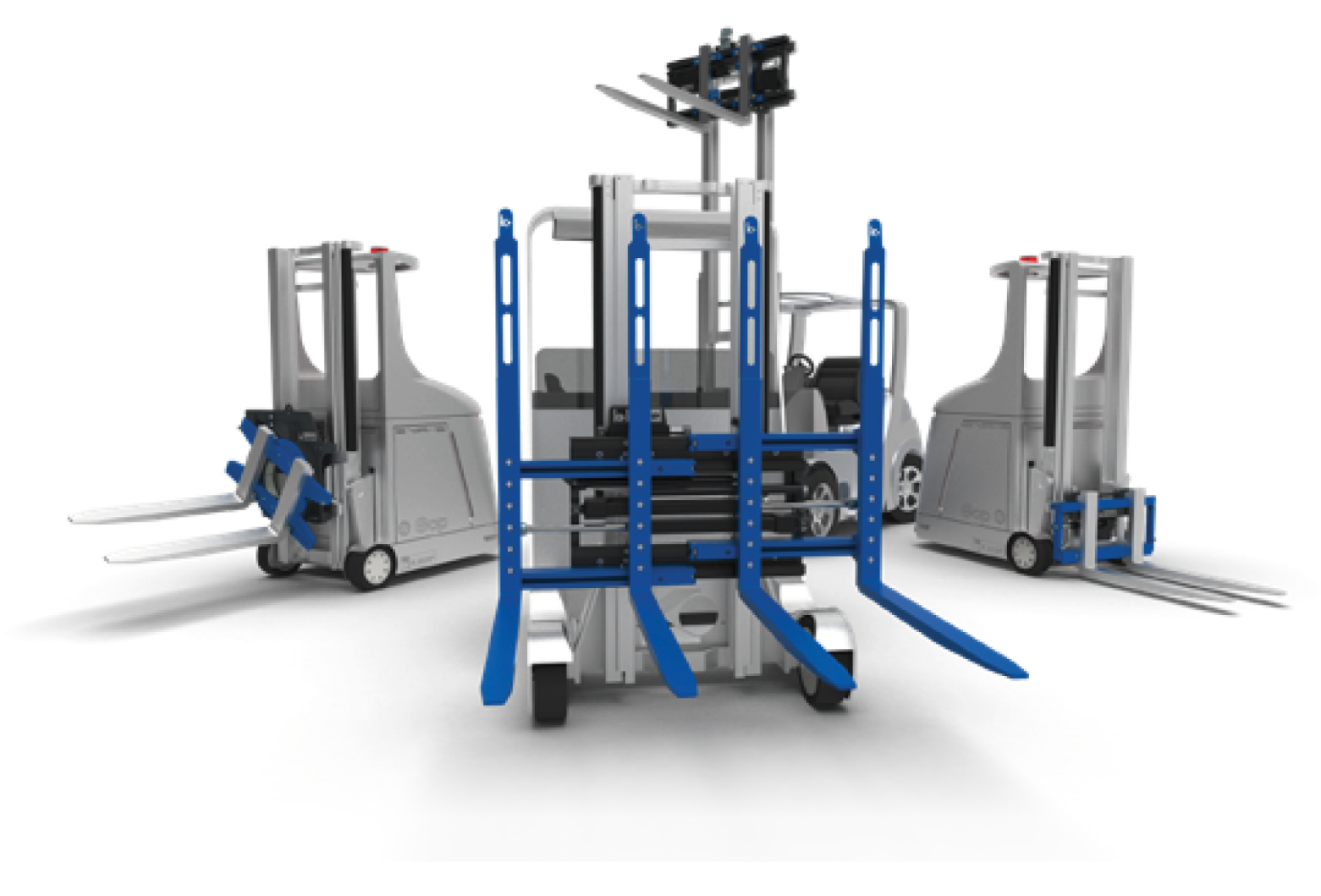

EOP:Electrical Attachment

The EOP (Electric-Only Powered) series offers electric-driven attachments that replace conventional hydraulic systems. This eliminates the need for hydraulics—meaning no oil, no leakage—providing a cleaner and more environmentally friendly alternative. These attachments also deliver higher precision control and successfully electrify key functions such as side shift, fork positioning, double pallet handling, and fork rotation.

Side Shifter

1. Capacity (kg)

   1,700 kg at 600 mm l.c.
2. LCD (mm)

   880
3. Mouting ISO Class

   2A
4. Supply Voltage

   24V DC (12V / 48V)
5. Rated Current

   10A
6. Rated Power

   240

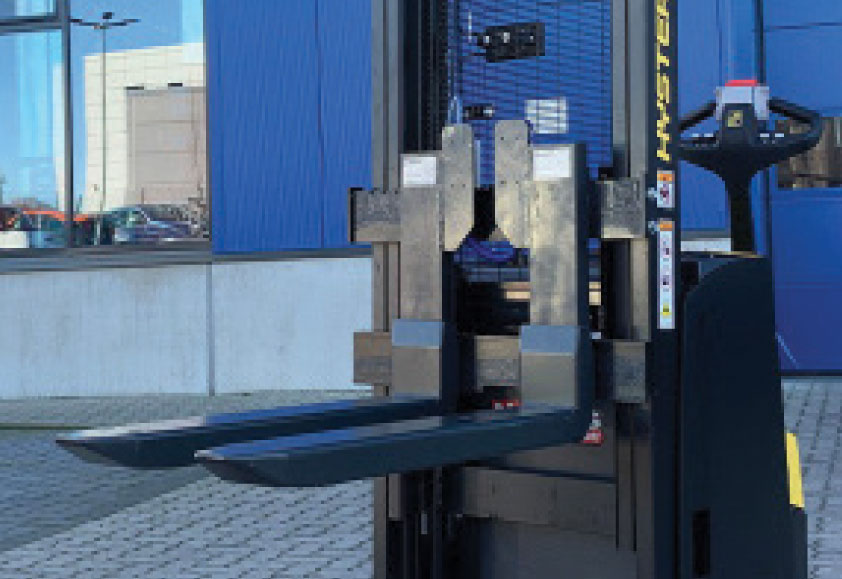

Fork Positioner

1. Capacity (kg)

   1,500 kg at 500 mm l.c.
2. LCD (mm)

   1,040
3. Mouting ISO Class

   2A
4. Supply Voltage

   24V DC (12V / 48V)
5. Rated Current

   20A
6. Rated Power (W)

   480

Double Pallet Handler

1. Capacity (kg)

   1,600 kg at 600 mm l.c.
2. Construction Width (mm)

   930
3. ISO Class

   2A
4. Supply Voltage

   24V DC (12V / 48V)
5. Rated Current

   20A
6. Rated Power (W)

   480

Rotator

1. Rotation Range

   360° endless
2. Torque

   2,000 Nm
3. Rotation Speed

   2.5 min-1
4. Capacity (kg)

   1,200kg at 600mm l.c.
5. Construction Width (mm)

   930
6. ISO Class

   2A
7. Supply Voltage

   48V DC (12V / 48V)
8. Rated Current

   20A
9. Rated Power

   960

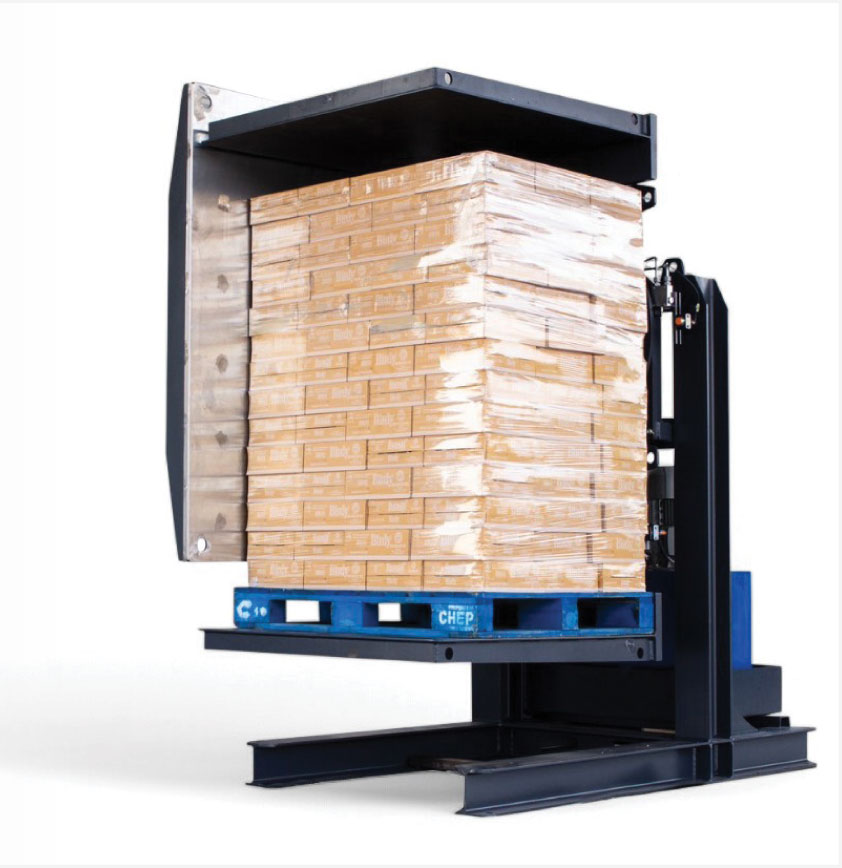

Pallet Turnover Stationary

A pallet inverter, or pallet changing machine, rotates products by 180° to transfer goods from one pallet to another. It also facilitates the replacement of damaged or broken goods on pallets quickly, conveniently, and safely.

1. Capacity (kg)

   1,000-2,500
2. Rotation

   180°
3. Opening Rage (mm)

   1,000-2,500
4. Arm Width (mm)

   1,000-1,300
5. Arm Depth (mm)

   1,100-1,300
6. Supporting Plate (mm)

   W1,000 - L1,300
7. Control

   PLC

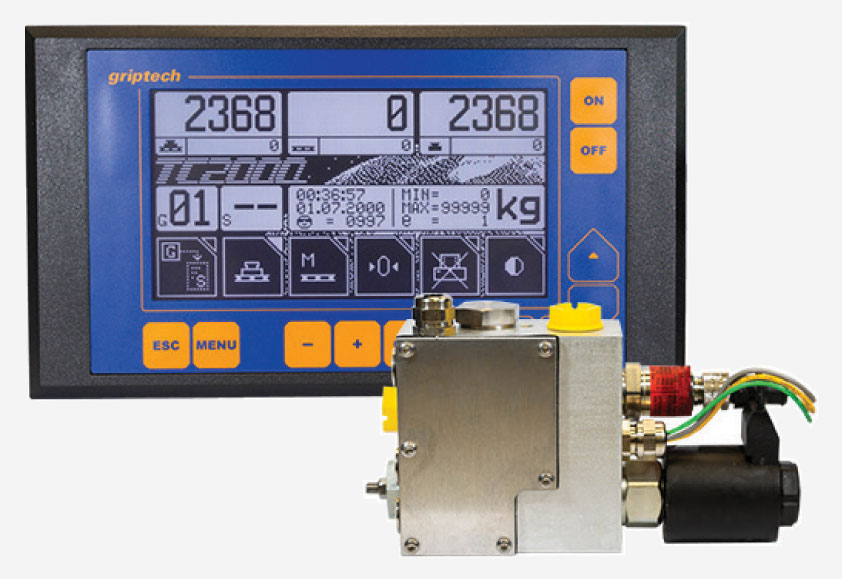

Weighing System

A weighing device for goods while being lifted by a forklift, featuring an accuracy tolerance as low as 0.02%. It is convenient, easy to install, and equipped with a display screen that allows various alert settings.
