ประตูเหล็กม้วน
Rolling Shutter Door

Roller shutter doors are widely popular due to their functionality and can be custom-made to any required size using high-quality materials.

Strong and durability

Wind protection

The color is made from powder coating and anodized aluminum, which is both aesthetically pleasing an

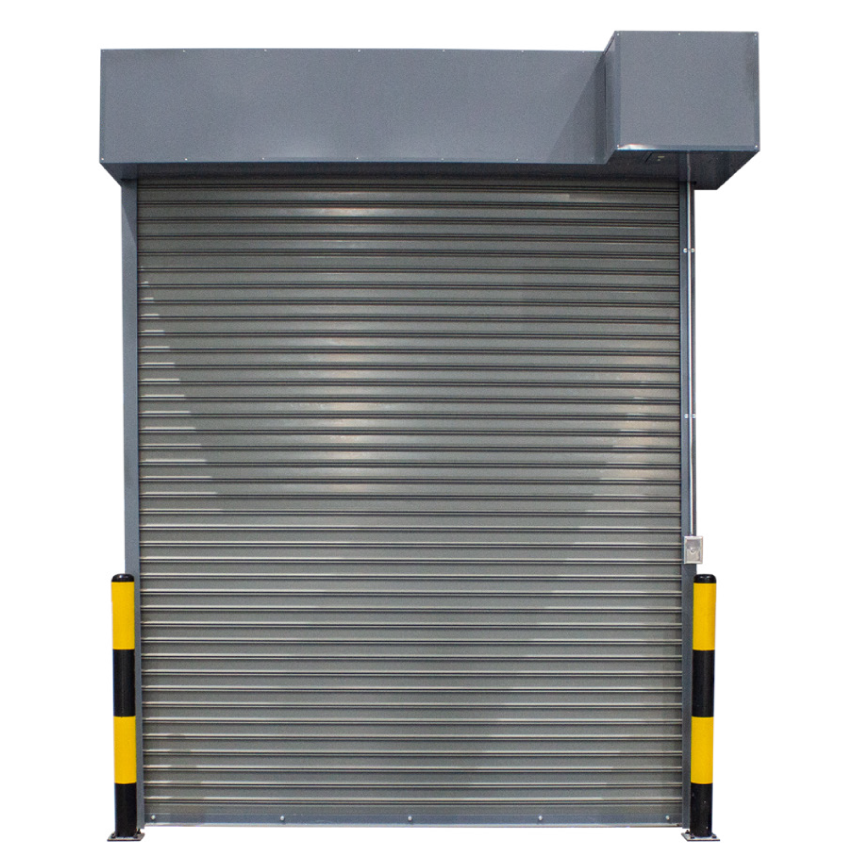

Rolling Shutter Door

Rolling steel doors are popular for factories, warehouses, distribution centers, shopping malls, and residences. Available in manual pull, chain hoist, and motorized systems, they are customizable to fit specific operational needs and dimensions.

System Types

Manual spring push up

Manual Chain operated

Electric motor

Dimension (mm)

Customize
Material

Steel / Stainless
Type of slats

Solid type , Micro-perforated type , Punched type
Slat thickness

0.4 / 0.6 / 0.7 / 0.9 / 1.0/ 1.2 / 1.6 mm
Operation system

Manual : Spring push up, Chain hoist / Electrical : Motor (Continuous chain for emergency use)
Power supply

Single phase / 220 Volts 3 phase / 380 Volts
Option supply

Remote Control / Safety sensor

Suitable Applications

Warehouse

Storage for goods

Logistic

Transporting goods

Department Store

Retail shop

Factory

Production facility

Hotel

Accommodation

Government

Public sector

Fireproof Rolling Shutter Door

Suitable for areas that require fire protection, such as storage areas for goods, chemical storage, and emergency exits. They can also be integrated with fire protection devices, such as temperature detectors, heat detectors, smoke detectors, and fire alarm systems. In the event of a power outage, there is a chain hoist system that allows for emergency operation.

Fire-resistant for up to 4 hours, with certification documents.

Strong and durable, made from high-quality materials.

High security, suitable for outdoor use.

Customizable to desired dimensions.

Provides fire resistance for up to 4 hours.

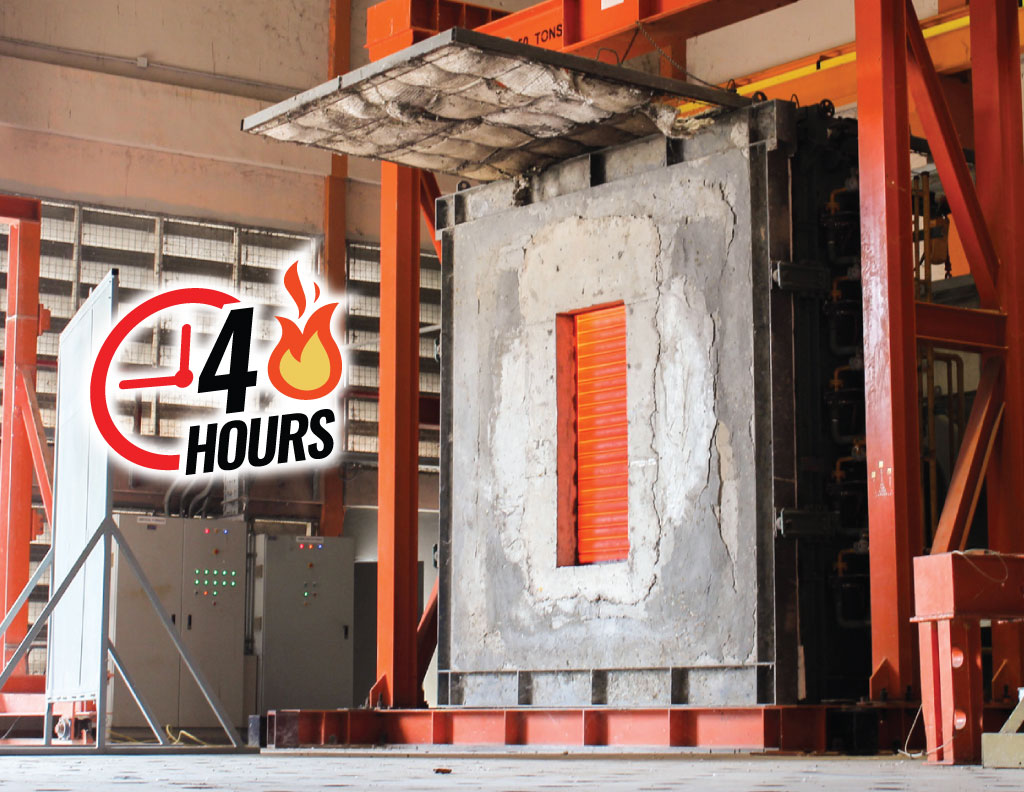

The fire-rated roller shutter door has been tested to withstand high temperatures exceeding 1,000°C and is capable of providing fire resistance for up to 4 hours.

Dimension (mm)

Customize
Material

Steel
Type of slats

Solid type
Slat thickness

1.2 mm / 1.6 mm
Operation system

Motor
Power supply

Single phase / 220 Volts 3 phase / 380 Volts
Option supply

Interlock system with fire protection system
Test method

BS 476 Part 20 , BS 476 Part 22

Option

Heat Detector

Smoke Detector

Warning Light

Delay Timer

Aluminium Shutter Door

Aluminum Shutter Door

It is a door primarily made from aluminum, offering strength, durability, and lightweight properties, along with excellent resistance to corrosion caused by external environmental conditions. It is commonly used in commercial buildings, garages, warehouses, or shops that require security, convenience, and a modern, stylish appearance.

Dimension (mm)

Max Width 6000 mm , Max Height 6000 mm
Material

Aluminium
Slat Thickness (mm)

1.2 mm
Operation System

Motor (continuous chain for emergency use)
Power Supply

Single Phase220V / 3 Phase 380V
Optional Supply

Remote Control / Safety Sensor

High-Quality Materials

Lightweight for quiet and smooth opening and closing.

Durable, resistant to sun and rain.

Easy to use, available in both manual pull and electric motor systems.

Door panels can be made in both solid and transparent styles.

Finished in powder-coated or anodized aluminum for a beautiful appearance and excellent heat resista

Specifications

Warehouse

สถานที่เก็บสินค้า

Factory

โรงงาน

Hotel

โรงแรม

Government

ภาครัฐ

Rolling Shutter Door

High Speed Rolling Shutter Door)

High-speed rolling doors can be used in a wide range of applications, both in commercial and industrial settings. They are made from steel or aluminum and operate by rolling the slats up and down using either a spring system or an electric motor. Their key features include high-speed opening and closing, quiet operation, a variety of color options, an attractive appearance, and durability.
