อุปกรณ์หนีบและหมุนสินค้า
Clamps & Rotating Attachments

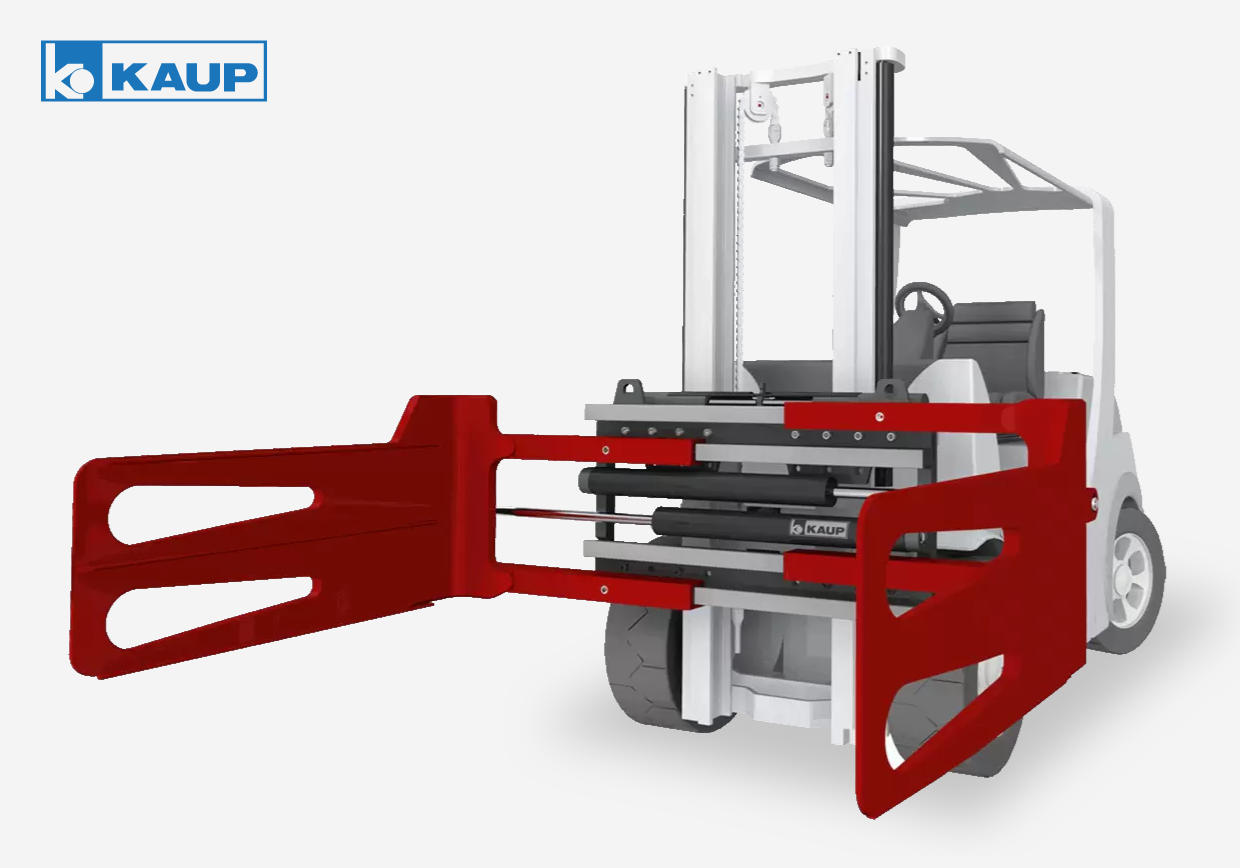

Bale Clamp

A forklift attachment used for clamping goods such as packages or rectangular bales, for example fabric, raw cloth, or recycled paper.

1. Model

   T413
2. Capacity (kg)

   1,600 - 6,000
3. LCD (mm)

   1,400 - 6,500
4. Sideshifter (mm)

   ±100 - ±160
5. Opening Range (mm)

   485 - 3,100
6. Arm Height (mm)

   440 - 560
7. Arm Length (mm)

   500 - 2,000
8. Carriage Width (mm)

   970 - 2,200
9. Mouting ISO Class

   2 - 4
10. Coating

    As Request

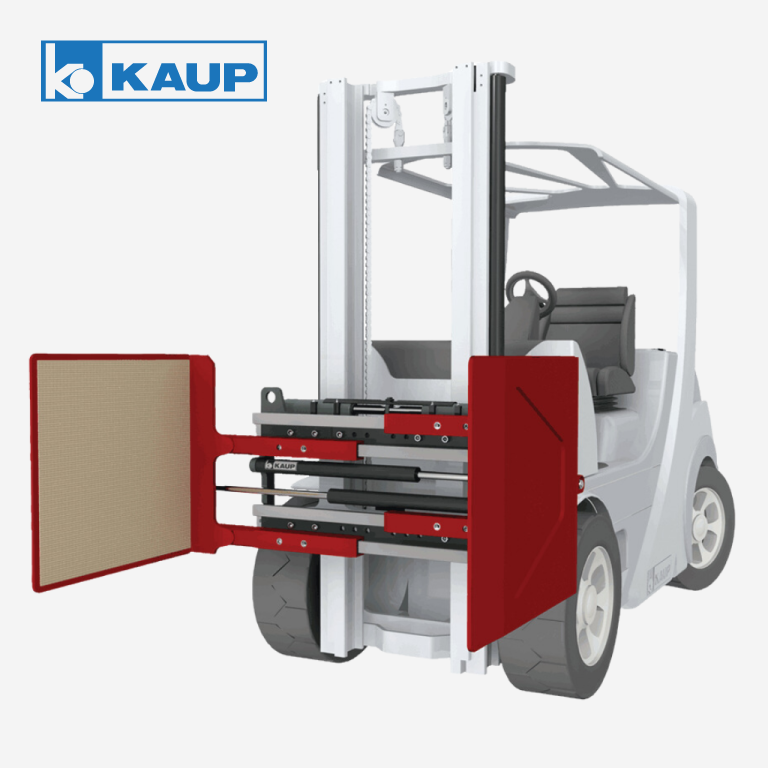

Carton Clamp

A forklift attachment with clamps, suitable for clamping and lifting large rectangular goods or electrical appliances such as refrigerators and washing machines.

1. Capacity (kg)

   1,250 - 2,000
2. LCD (mm)

   500
3. Sideshifter (mm)

   ±100
4. Opening Range (mm)

   330 - 2,375
5. Arm Height (mm)

   700 - 1,200
6. Arm Length (mm)

   1,000 - 1,380
7. Carriage Width (mm)

   970 - 1,520
8. Mouting ISO Class

   2 - 4
9. Coating

   Rubber, PU

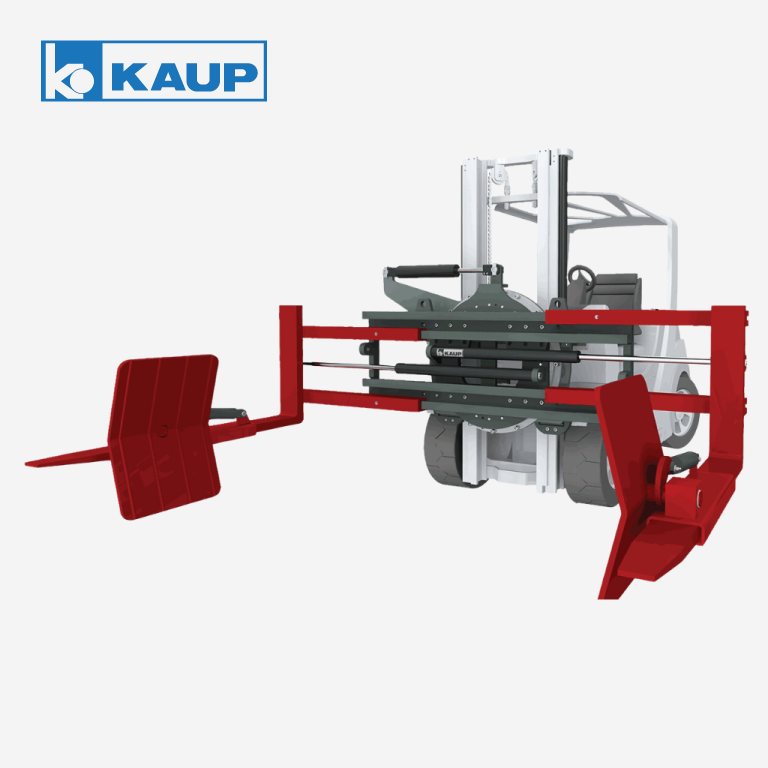

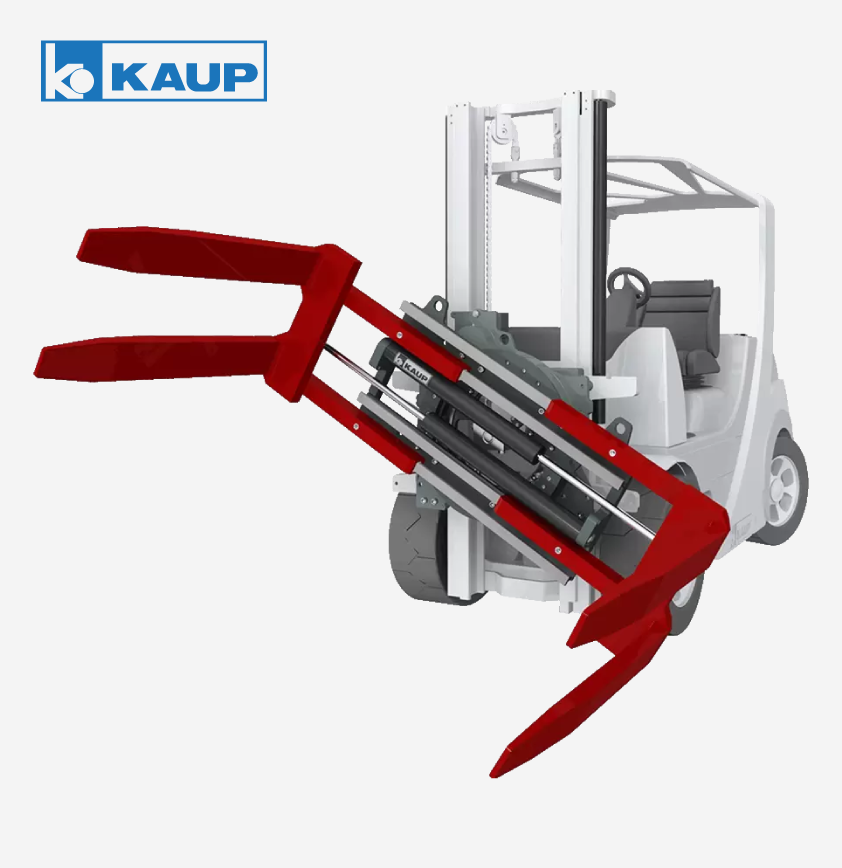

Pallet Turnover Clamp

A pallet rotator capable of rotating up to 360°, used for transferring goods from one pallet to another, enabling quick, convenient, and safe handling of products.

1. Capacity (kg)

   1,600 - 6,000
2. LCD (mm)

   600 - 1,200
3. Sideshifter (mm)

   ±100 - ±250
4. Opening Range (mm)

   560 - 2,160
5. Fork Length (mm)

   1,000 - 2,400
6. Carriage Width (mm)

   1,400 - 2,500
7. Mouting ISO Class

   2 - 4

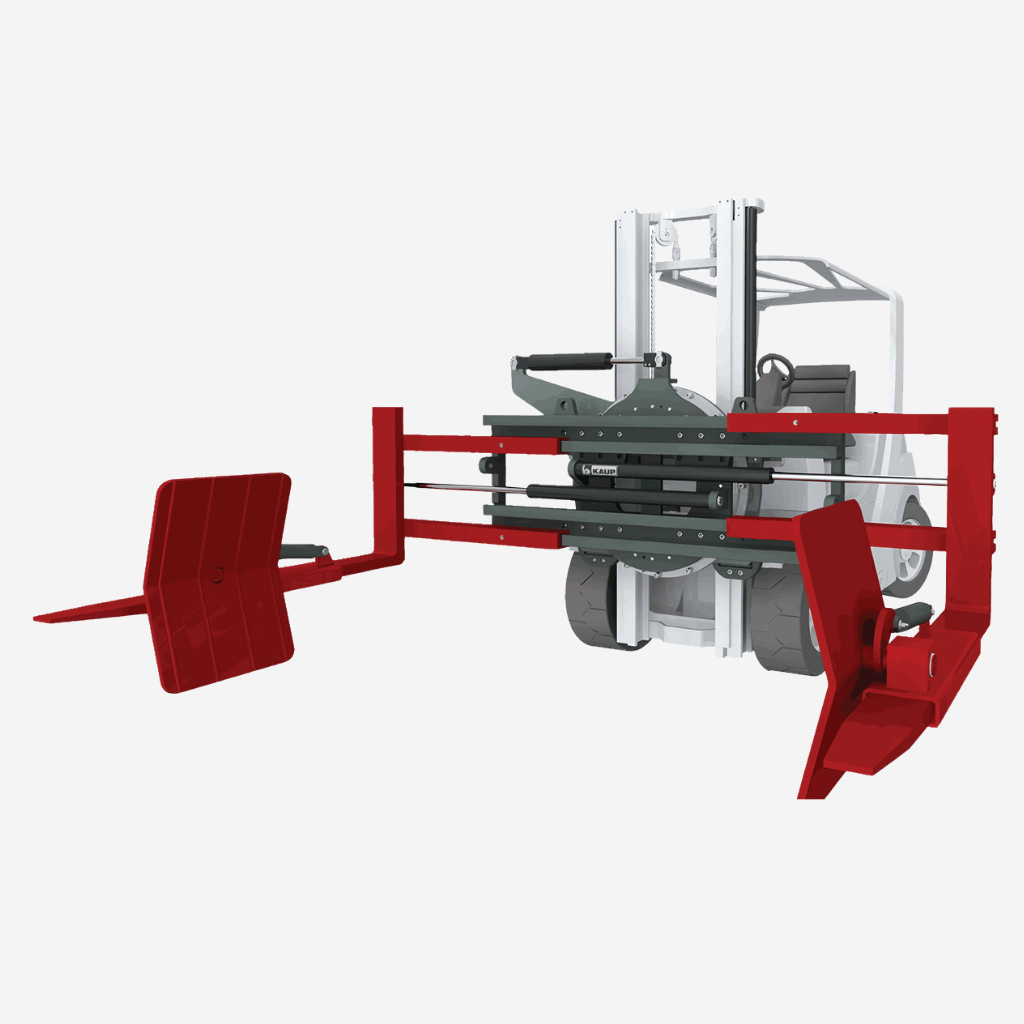

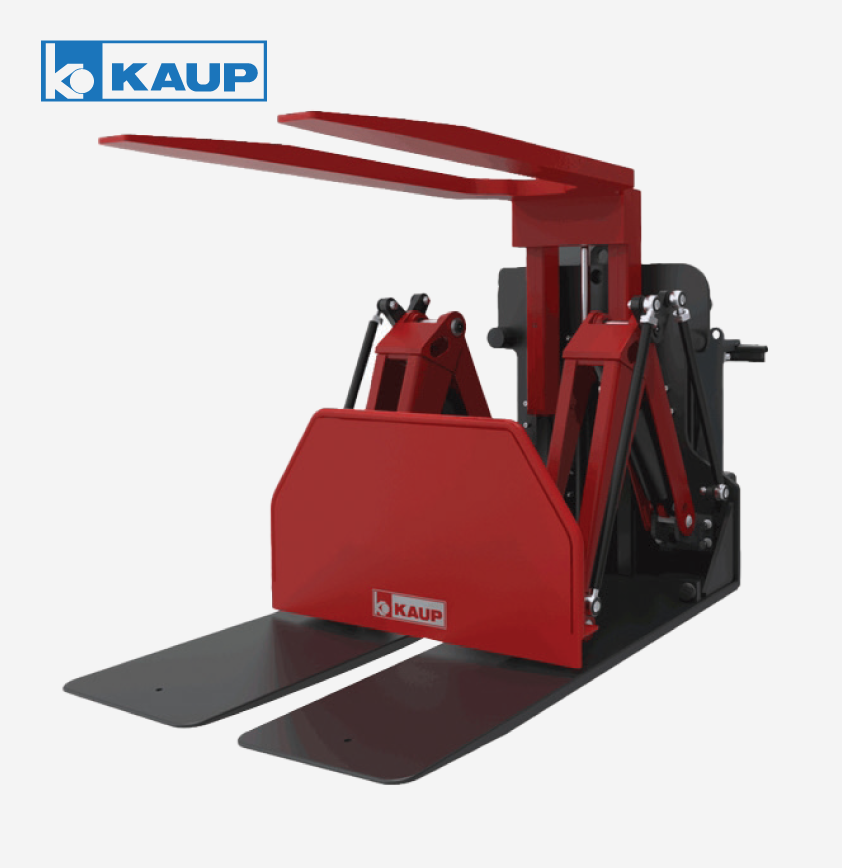

Pallet Turnover With Pusherclamp

1. Capacity (kg)

   1,400 - 2,500
2. LCD (mm)

   600
3. Height A (mm)

   700 - 1,675
4. Mouting ISO Class

   2/3 - 4

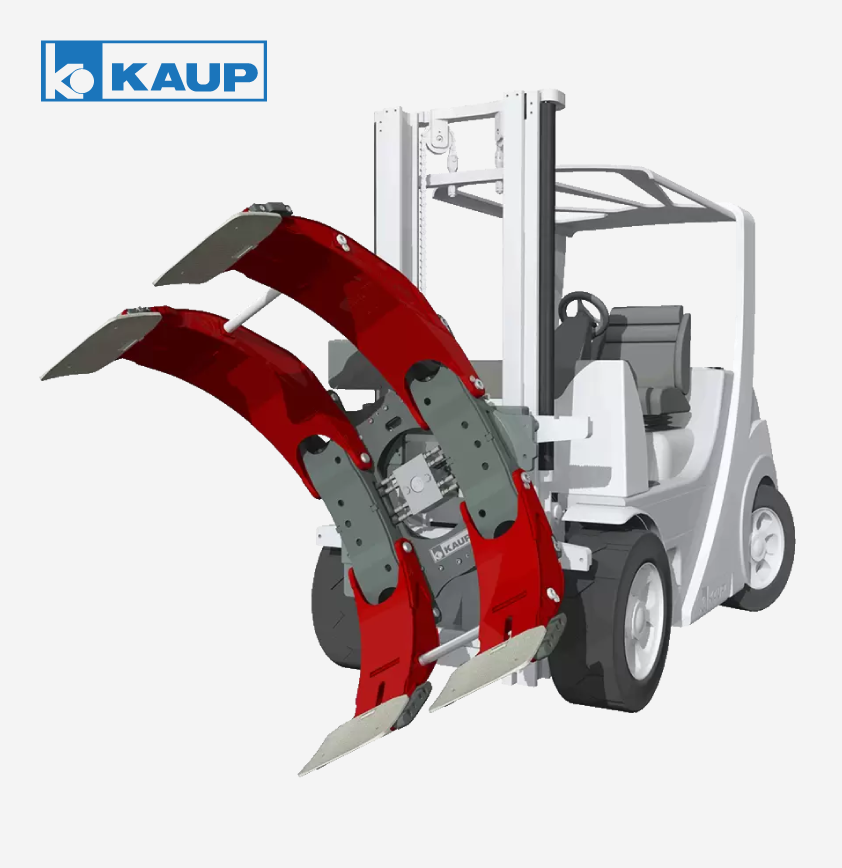

Rotating Roll Clamp

A forklift attachment capable of rotating 360°, used for clamping cylindrical or round-shaped goods, such as paper rolls or large pipes.

1. Capacity (kg)

   2,500 - 8,000
2. Capacity On Clamp (kg)

   500 -600
3. Sideshifter (mm)

   ±100 - ±160
4. Carriage Width (mm)

   800 - 2,000
5. Mouting ISO Class

   2 - 4

Tyre Handler

Suitable for transporting large items used in industrial applications, such as mining, for storing and replacing tires in mining operations, construction, or large vehicle tires.

1. Capacity (kg)

   2,300 - 15,000
2. Capacity On Clamp (kg)

   5,000
3. Sideshifter (mm)

   ±100 - ±200
4. Opening Range (mm)

   1.170 - 4,550
5. Tyre Diameter (mm)

   1,050 - 4,000
6. Carriage Width (mm)

   1,720 - 3,450
7. Mouting ISO Class

   2 - 3

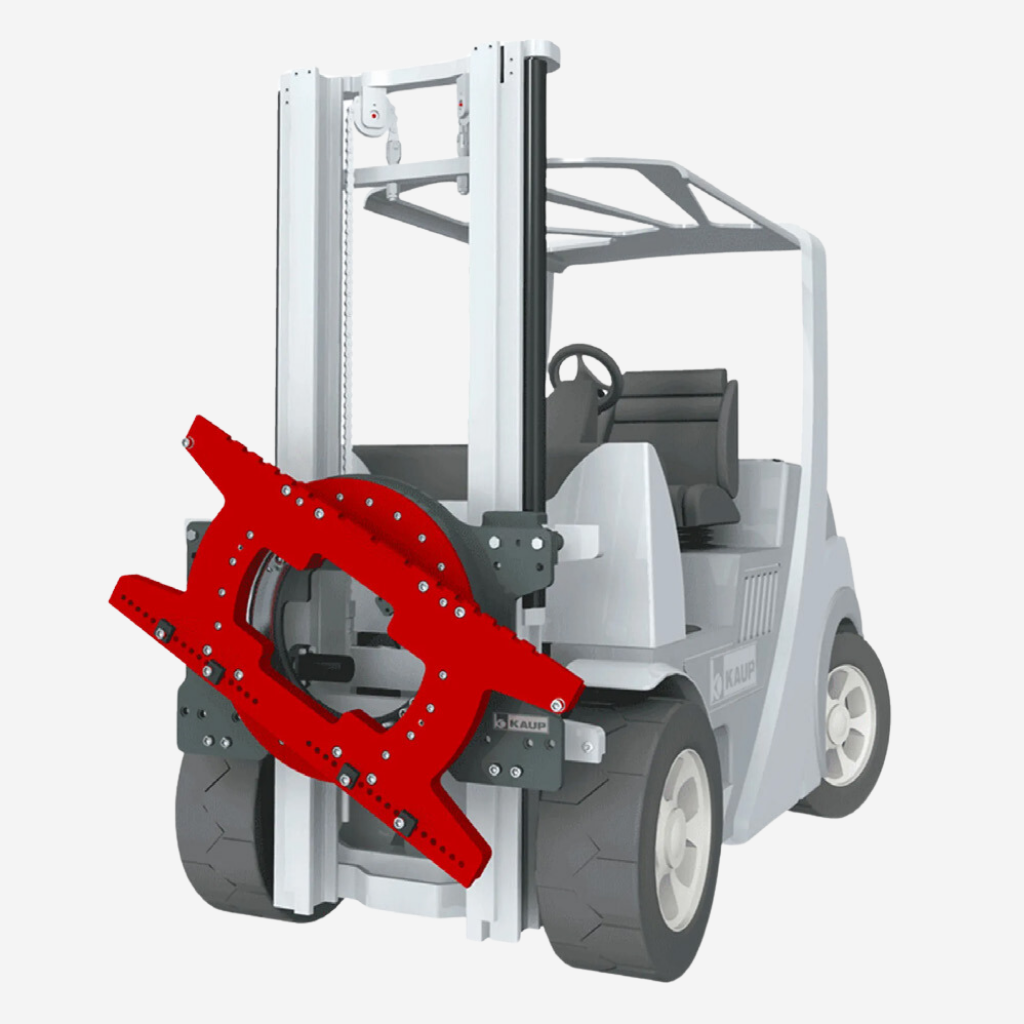

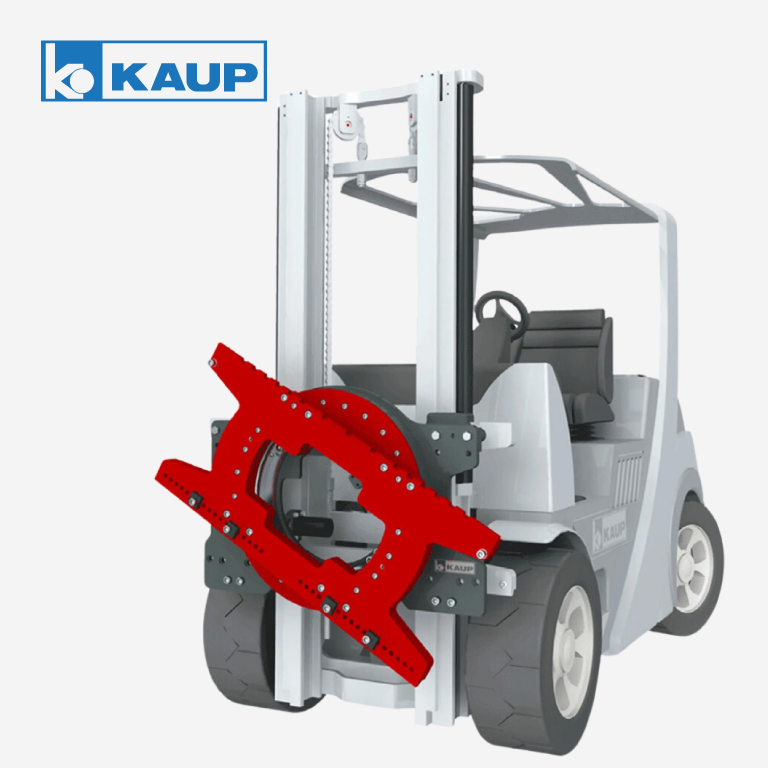

Rotator 360°

Designed to be installed on the forklift mast, it can rotate 360 degrees. It is used for rotating to tilt goods or for rotating objects. It is suitable for use in high-temperature conditions.
