อุโมงค์โหลดสินค้าคลุมท้ายรถ
Dock Shelter

Functions as a seal between the loading dock and the truck body, ensuring quick and safe loading and unloading of goods. Constructed with a strong load-bearing frame and PVC. Dock shelters protect the facility from dust, wind, rain, insects, and drafts.

Dock Shelter

A loading tunnel designed to provide protection during the loading and unloading of goods. It consists of a strong load-bearing frame and PVC tarpaulin. The tunnel is engineered to absorb impacts when trucks dock closely to the loading area. The tarpaulin closes the side gaps, shielding goods from dust and weather conditions.

Retractable Dock Shelter
Retractable Dock Shelter

Collapse upon impact and can be extended or retracted, making it ideal for areas with moderate shipping volumes.

  1. Model
    RDS3434
  2. Dimension (mm)
    W 3,400 x H 3,400 x D 600
  3. Thickness of font PVC (mm)
    3
  4. Thickness of side PVC (mm)
    0.5

Dock Seal

Dock Seal
Dock Seal

Foam-covered with canvas seal helps prevent the escape of cold or heat when trucks enter or leave a warehouse or factory through the dock door. Creates the securely sealed interior around the truck reducing dust, insects, and other external contaminations into facility.

  1. Model
    DSS2530
  2. Dimension (mm)
    W 3,190 x H 3,600 x D 300
  3. Top Cushion Adjustment (mm)
    900
  4. Operating temp
    -35 °C to +50 °C
Inflatable Dock Shelter
Inflatable Dock Shelter

Ideally designed for cold warehouses or factories that need to control temperature and prevent air leaks during loading and unloading operations. Air blower helps to inflate air bags till they tightly seal to the end of the truck and deflate when not in use.

  1. Model
    RDS3433
  2. Dimension (mm)
    W 3,400 x H 3,300 x D 800
  3. Top cushion (mm)
    900
  4. Power Supply
    380V, 3P, 50Hz
  5. Operating Temp
    -35 °C to +50 °C
  1. Model
    RDS3438
  2. Dimension (mm)
    W 3,400 x H 3,800 x D 800
  3. Top cushion (mm)
    1,200
  4. Power Supply
    380V, 3P, 50Hz
  5. Operating Temp
    -35 °C to +50 °C
Dock Houses
Dock Houses

A convenient loading dock for outside of the warehouse or factory areas. Suitable for special loading conditions while effectively preventing dust and dirt from entering during the loading process.

  1. Model
    DSS2530
  2. Dimension (mm)
    Depend on dimensions of RDS and DL
  3. Angle
    90° / 60° / 45° / 30°
  4. Thickness of Panel (mm)
    40
  5. Wall
    Corrugated sheet
  6. Roof
    Galvanized sheet

Accessories Option

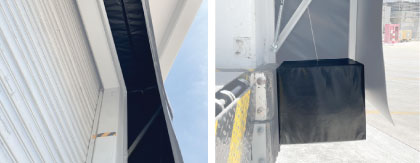

Draftpad
Draftpad

Custom-designed rubber seal for closing side gaps of the loading dock tunnel, effectively preventing dust and insect intrusion.

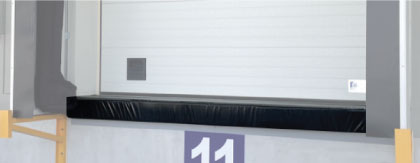

Bottom pad
Bottom pad

A specially designed front-mounted rubber seal, compatible with airbag-type loading dock shelters, providing enhanced protection against temperature leakage, dust, and insect infiltration.
