เครื่องพันฟิล์มอัตโนมัติแบบเต็มระบบ
Semi-Automatic Wrapping Machine

The semi-automatic wrapping machine comes in both rotating turntable and rotating arm configurations, designed to meet a variety of applications designed to specific requirements

Model : MYTHO S
Model : MYTHO S
  1. Truntable Diameter (mm)
    STD 1,650 / Optional 1,800
  2. Max. Wrapping Height (mm)
    STD 2,450 / Optional 3,200
  3. Max. Pallet Weight (kg)
    STD 2,000 / Optional 3,000
Model : SYNTHESI
Model : SYNTHESI
  1. Truntable Diameter (mm)
    STD 1,650 / Optional 1,800
  2. Max. Wrapping Height (mm)
    STD 2,450 / Optional 3,200
  3. Max. Pallet Weight (kg)
    STD 2,000 / Optional 3,000

Optional

Ramp
Ramp
Strip Cutting Device
Strip Cutting Device

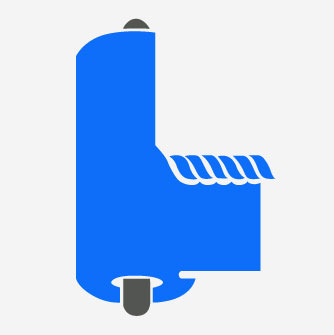

Roping System
Roping System
Strip Cutting Device
Strip Cutting Device
Low Profile
Low Profile
Arya
Arya
TP Transpallet-turntable
TP Transpallet-turntable
Stretchfilm Cutter
Stretchfilm Cutter

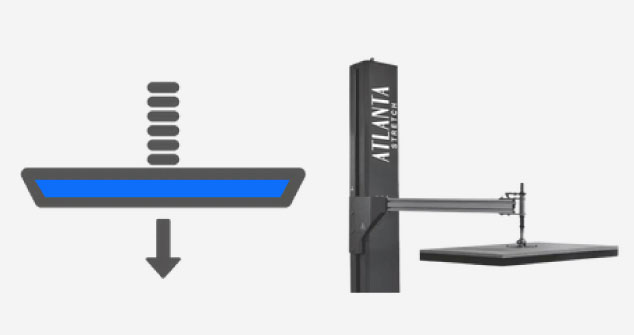

Integrated Weighing System
Integrated Weighing System

Spool Film Carriage

FM
FM

An adjustable mechanical brake system operated by hand.

FE
FE

An electric brake adjustable from the control panel.

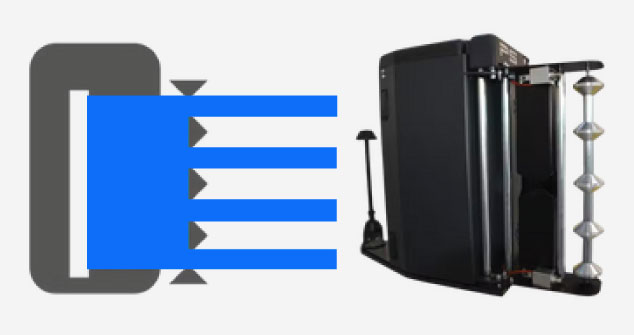

OPRS ONE PRE STRETCH
OPRS ONE PRE STRETCH

The motorized pre-stretch film system consists of two electrically driven rollers, allowing adjustable stretch ratios of 150%, 200%, and 250%.

PRS POWER ROLLER STRETCH
PRS POWER ROLLER STRETCH

A hand-adjustable mechanical brake.

PS POWER STRETCH
PS POWER STRETCH

An electromagnetic brake system, adjustable from the control panel, for precise control of film tension.

Model : LYBRA
Model : LYBRA

This model can be programmed with up to 99 settings. It comes standard with a mechanical brake system and offers a choice of film carriage systems: FE, PRS, or PS Power Pre-Stretch.

  1. Diameter (mm)
    STD Ø 2,075 / Max. Optional Ø 2,400
  2. Max. Pallet Dimensions (mm)
    STD 1,200 x 1,200 / Optional 1,400-1,700
  3. Max. Pallet Height (mm)
    230V-50 / 60 Hz - 1ph
  4. Maximum Arm Rotation Speed (rpm)
    12
Model : SFERA WITH MAST
Model : SFERA WITH MAST

The automatic rotary arm stretch wrapping machine is suitable for heavy loads, as it uses a rotating arm to wrap around the pallet.

  1. Min. Pallet Dimension (mm)
    650 x 400
  2. Max. Wrapping Height (mm)
    STD 2,200 / Optional 2,700
  3. Battery Charger
    230V 50 / 60 Hz
Model : MOBILE WRAPPING MARATHON
Model : MOBILE WRAPPING MARATHON

The compact and lightweight walk-behind stretch wrapping machine is suitable for pallets or products of any size.

  1. Carriage Braking System
    FM
  2. Standard Wrapping Height (mm)
    2,000
  3. Recommended Thickness For Stretch - Film
    From 10 to 20 µm
Interested in our products? Contact us for more details and information !
