อุปกรณ์ปรับงาและเลื่อนงา
Fork Positioners & Side Shifters

Fork positioning and sliding attachment, enhancing accuracy and efficiency in pallet handling.

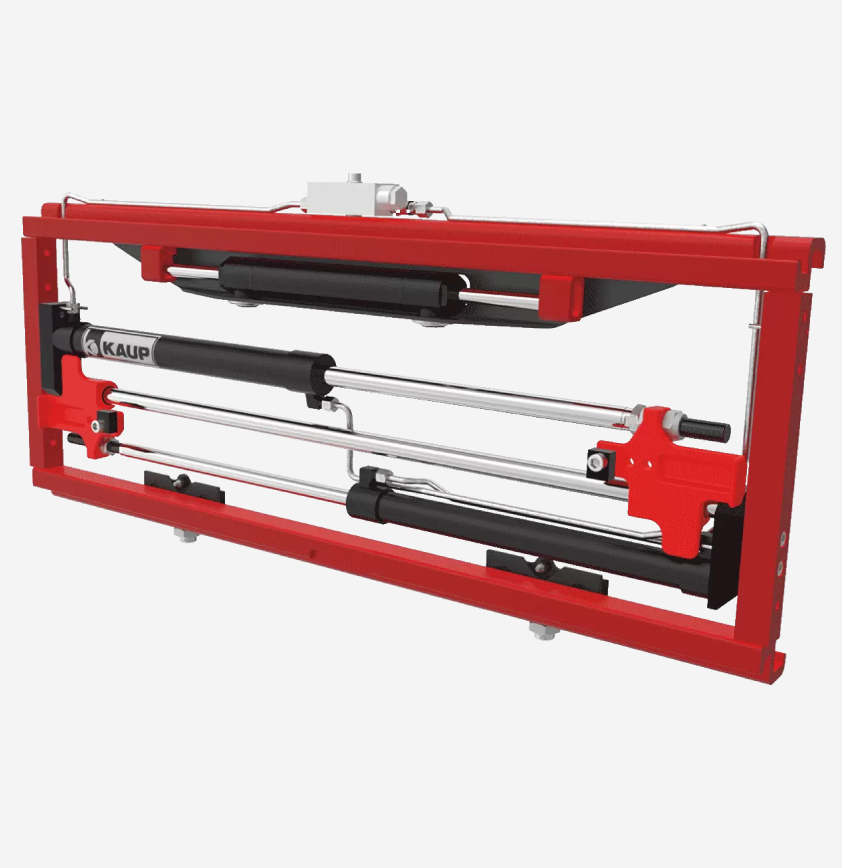

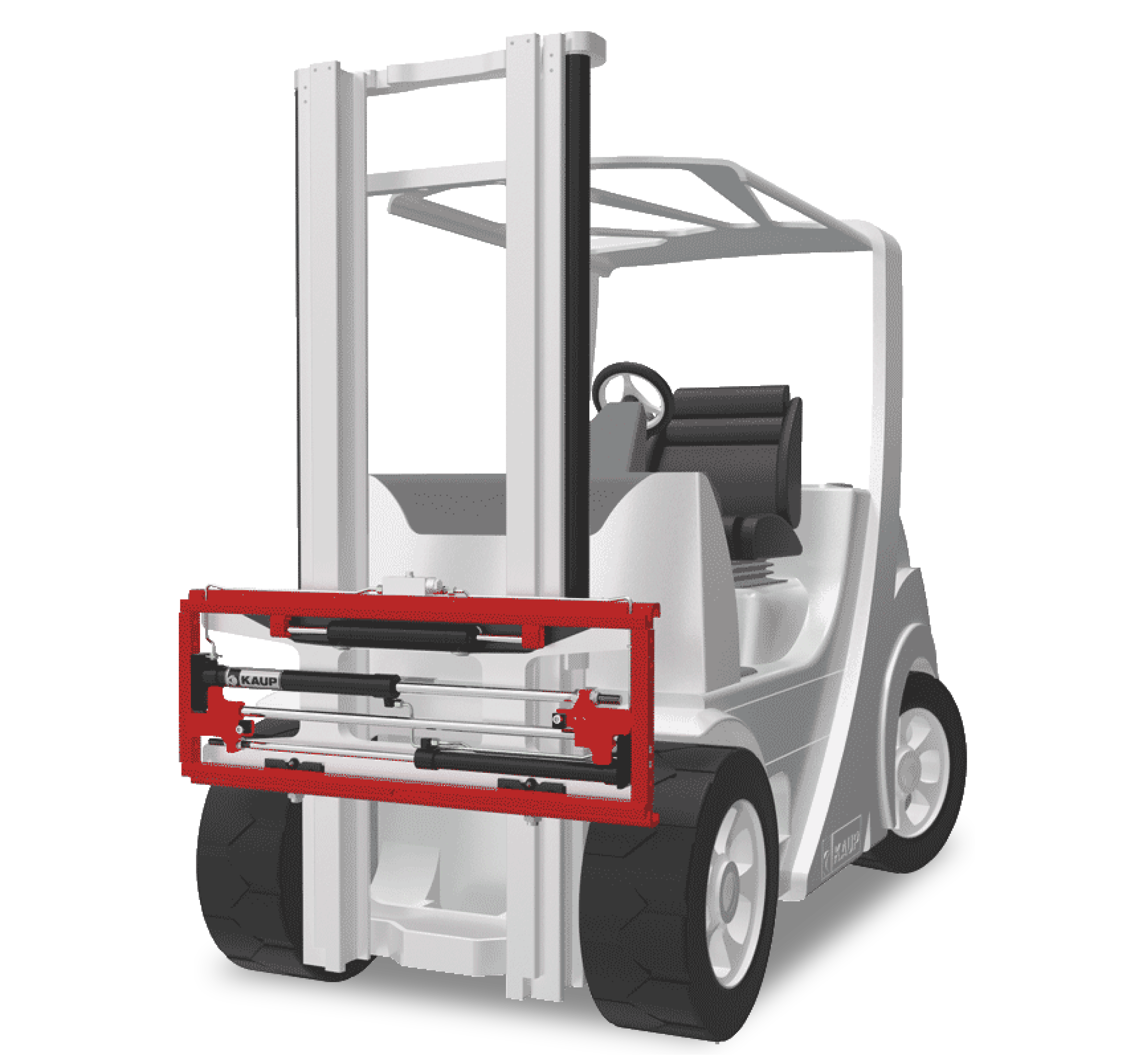

Fork Positioners

The Fork Positioner T156 is the entry-level series of fork positioners from KAUP. This model offers an excellent price-to-performance ratio, featuring parallel fork movement powered by two hydraulic cylinders. Its design is based on the proven P4-Sideshifter series.

*Optional Interlocking And Telescopic
  1. Model
    T156
  2. Capacity (kg)
    2,500 - 5,000
  3. Opening Range (mm)
    290 - 795 , 295 - 1,055 , 355 - 1,055 , 355 - 1,255
  4. Mouting IOS Class
    2 - 3
  5. uitable For Fork Width (mm)
    560 - 2,160
  6. Mouting ISO Class
    2 - 3

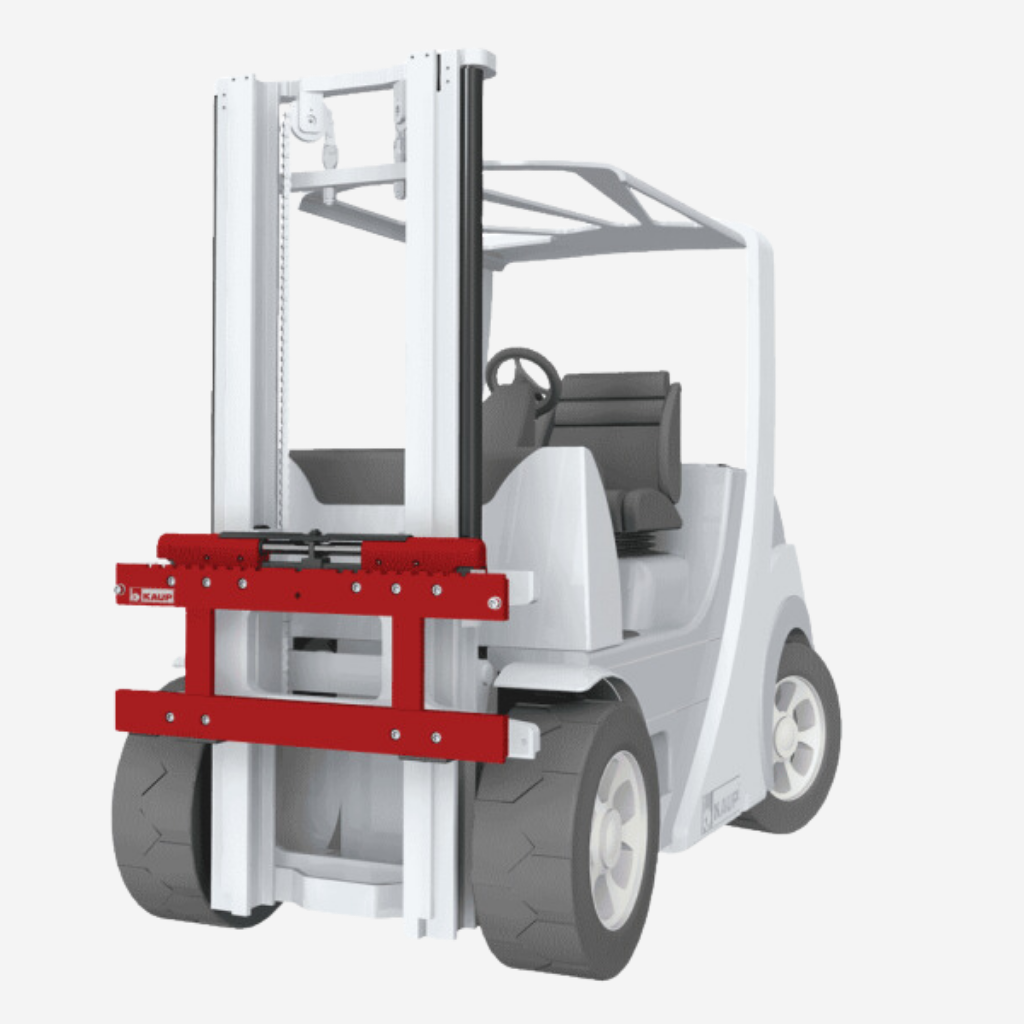

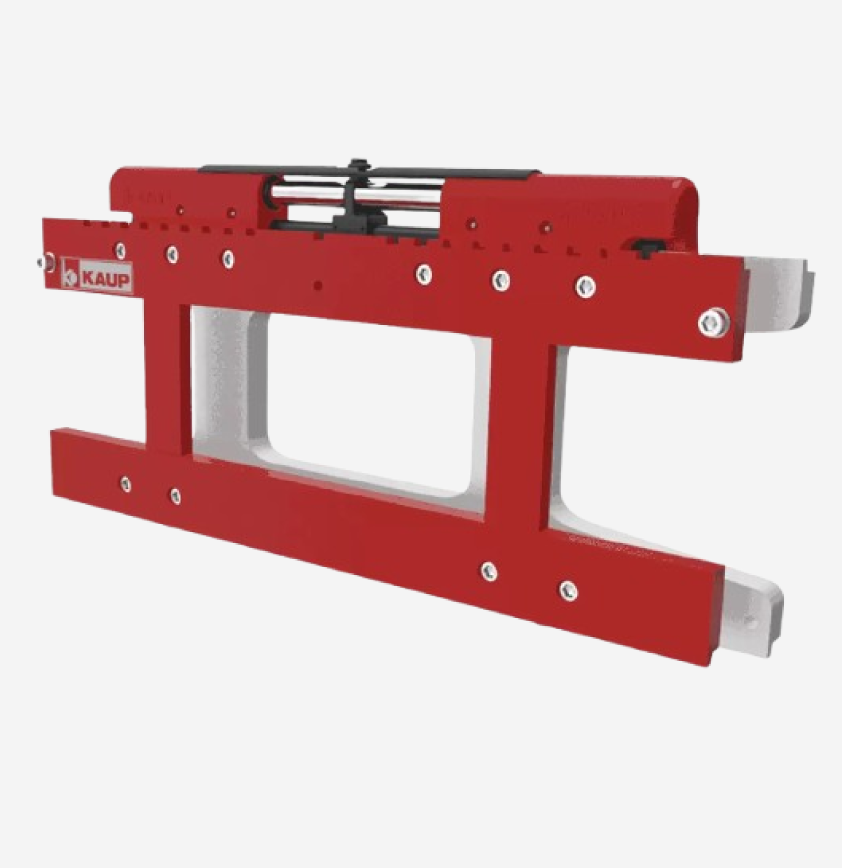

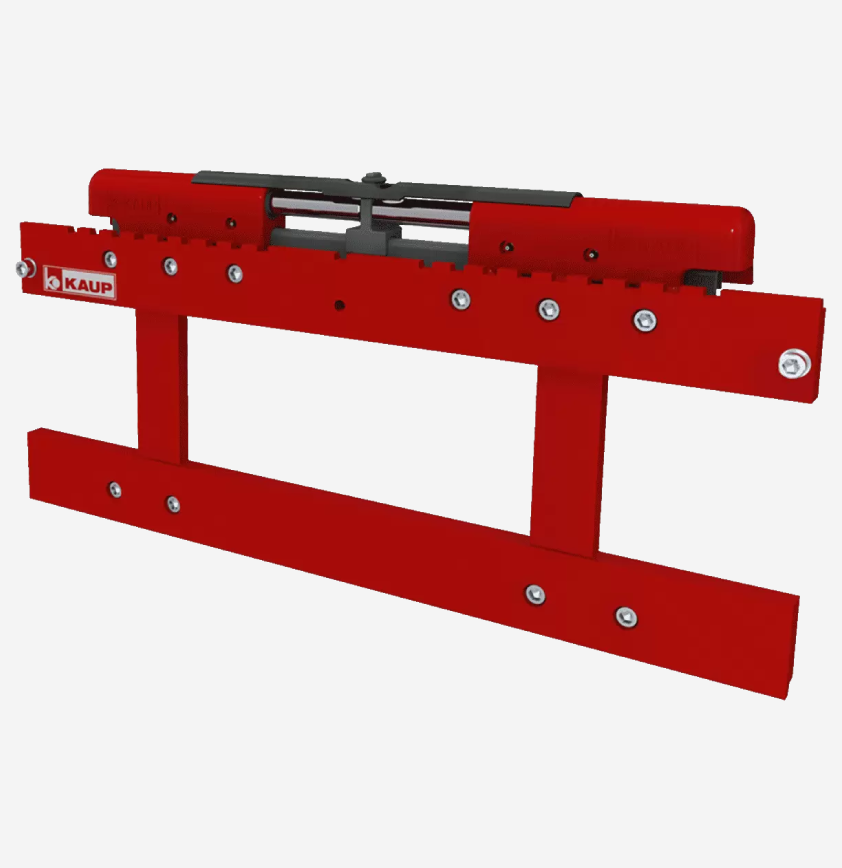

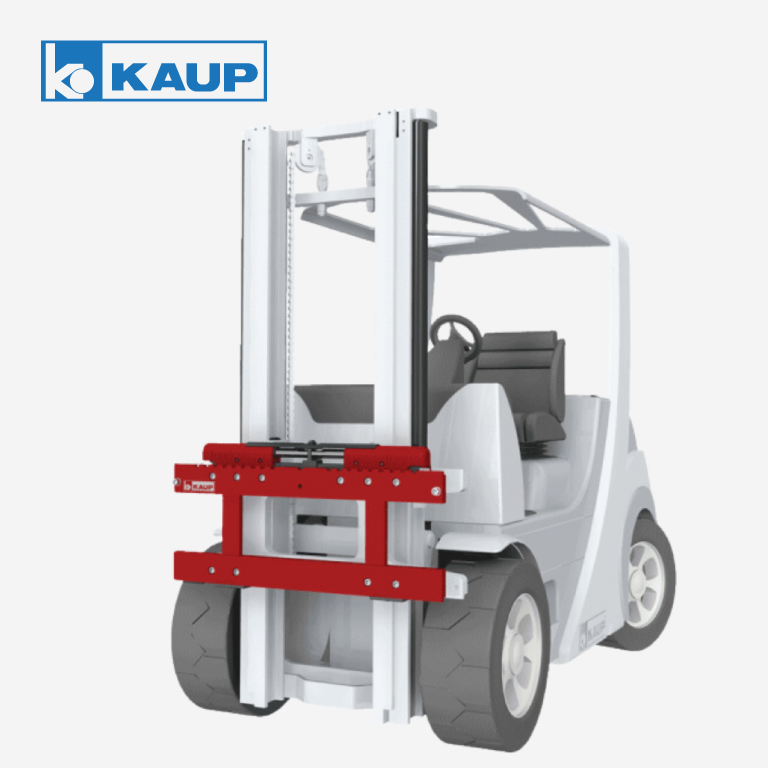

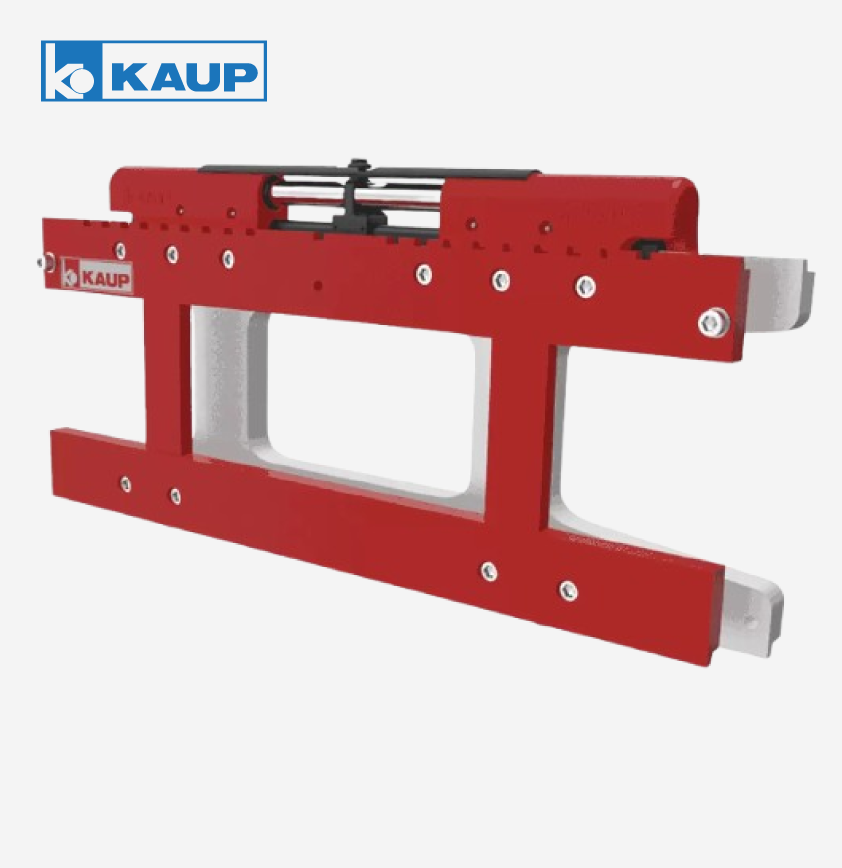

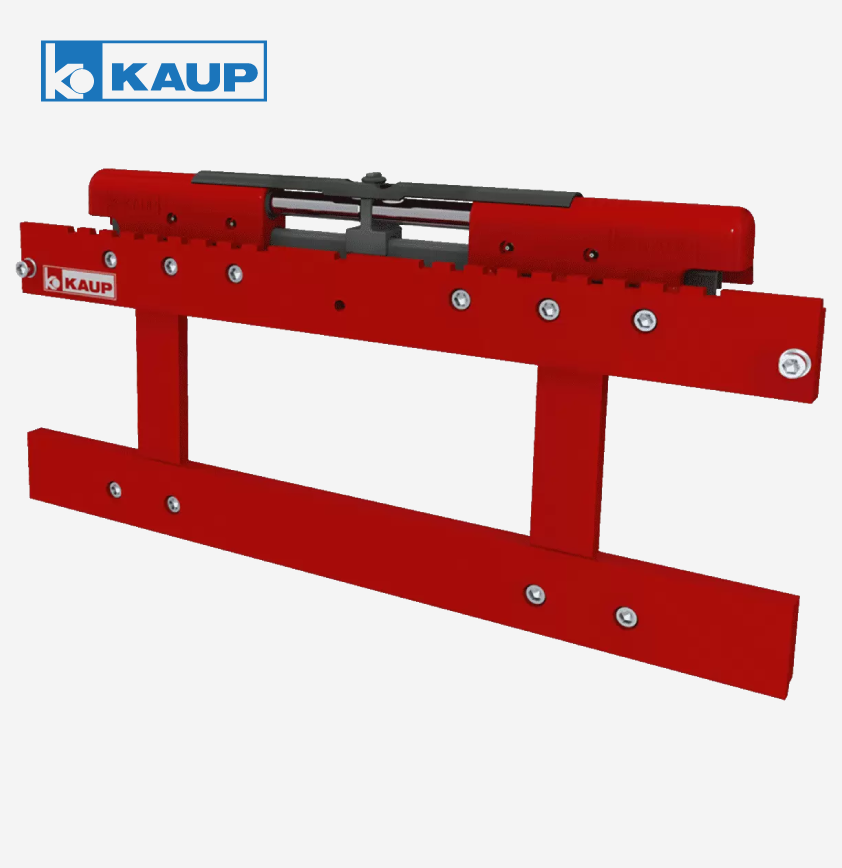

Side Shifters

Used for mounting on the forklift’s fork carriage, it allows horizontal adjustment to the left or right without moving the truck, enabling more convenient and precise placement of goods.

  1. Model
    T1511
  2. Capacity (kg)
    2,500 - 8,000
  3. Capacity on Clamp (kg)
    500 - 600
  4. Sideshifter (mm)
    ±100 ±160
  5. Mouting ISO Class
    2 - 4
