Hoist Lift

Hoist Lift is a device used for lifting or moving objects. It operates via a drum or rotating wheel with rope or chain wound around it. It can be powered manually, electrically, or by pneumatic systems, and uses rope or chain as the lifting medium.

Requires minimal installation space
Requires minimal installation space
Cost-effective
Cost-effective
High load capacity
High load capacity
Suitable for industrial applications
Suitable for industrial applications

High Efficiency Lowest Cost

Hoist is a device used for lifting or lowering objects by means of a mechanism involving a drum or a lift wheel, around which a rope or chain is wound.

Hoists can be powered manually, electrically, or pneumatically, and may use chain, fiber rope, or wire rope as the lifting medium to move or handle loads.

  • • Does not require a large machine room or a counterweight system
  • • Simple structure with low maintenance cost
  • • Can be designed to support high load capacity
  • • Widely used in factories, warehouses, and construction sites
Hoist Lift
Hoist Lift

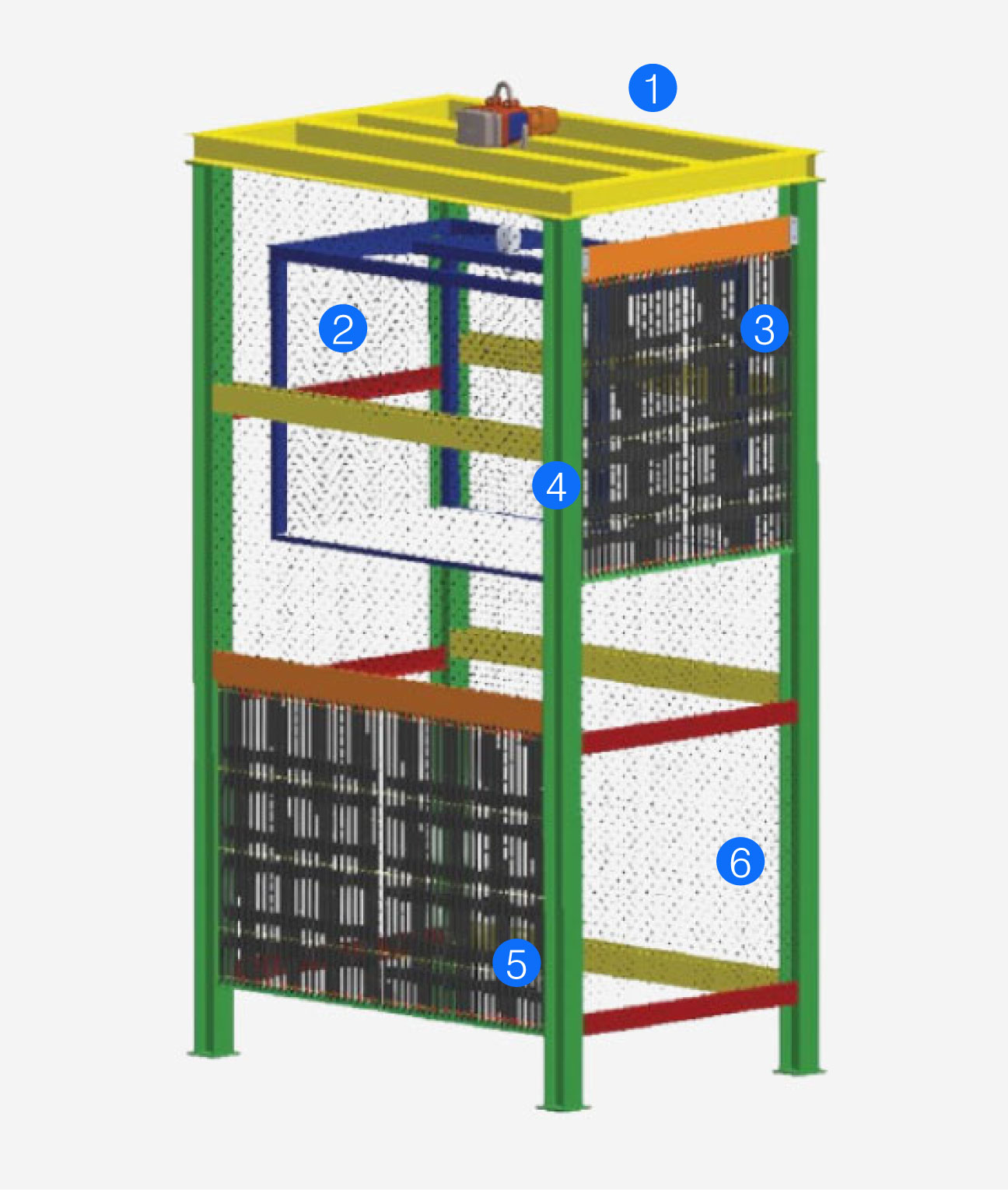

Standard Configuration

  1. 1. Electric Hoist
    3 phase 380V
  2. 2. Freight
    IF required

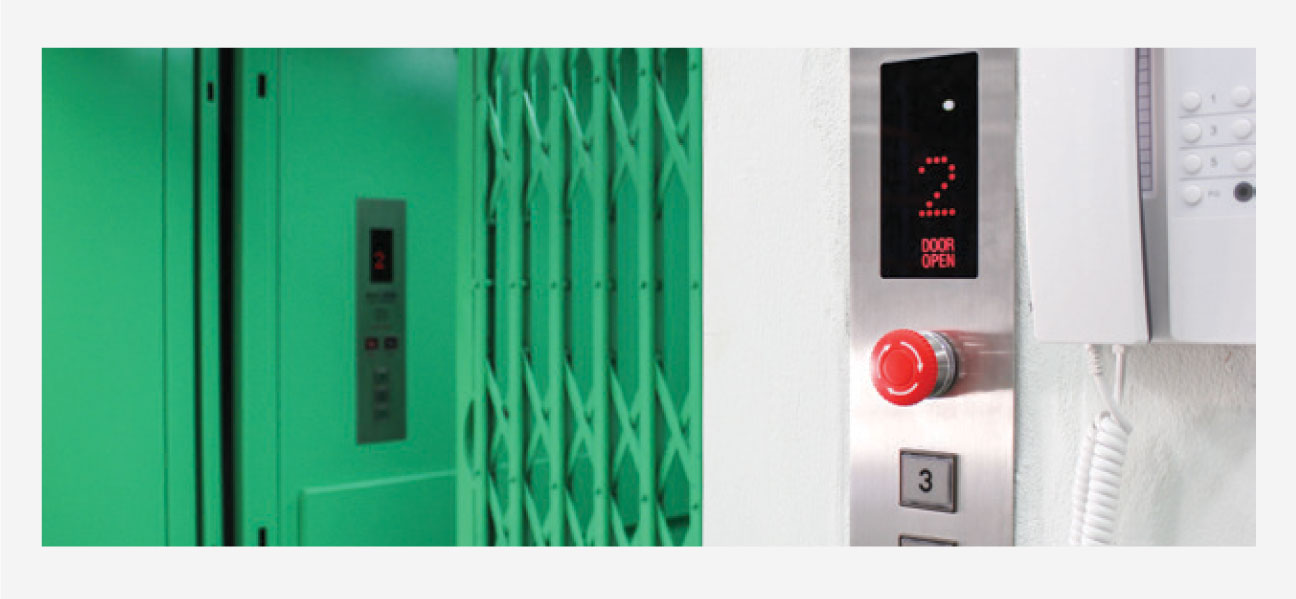

  3. 3. Car door
    Expendable door or required
  4. 4. C.O.P
    Hairline stainless steel
  5. 5. Car buffer
    Spring or Hydraulic
  6. 6. Structure
    H-Beam 150 x 150 mm. [1]

[1] The elevator structure can be tailored to accommodate specificdimensional and load-bearing requirements.

Standard Specification

  1. Lift Type
    Freight or None Freight
  2. Capacity (kg.)
    500 ~ 5000
  3. Car Inside (mm.)
    W 2000 x D 2000 x H 2000
  4. Door Size (mm.)
    W 2000 x H 2000

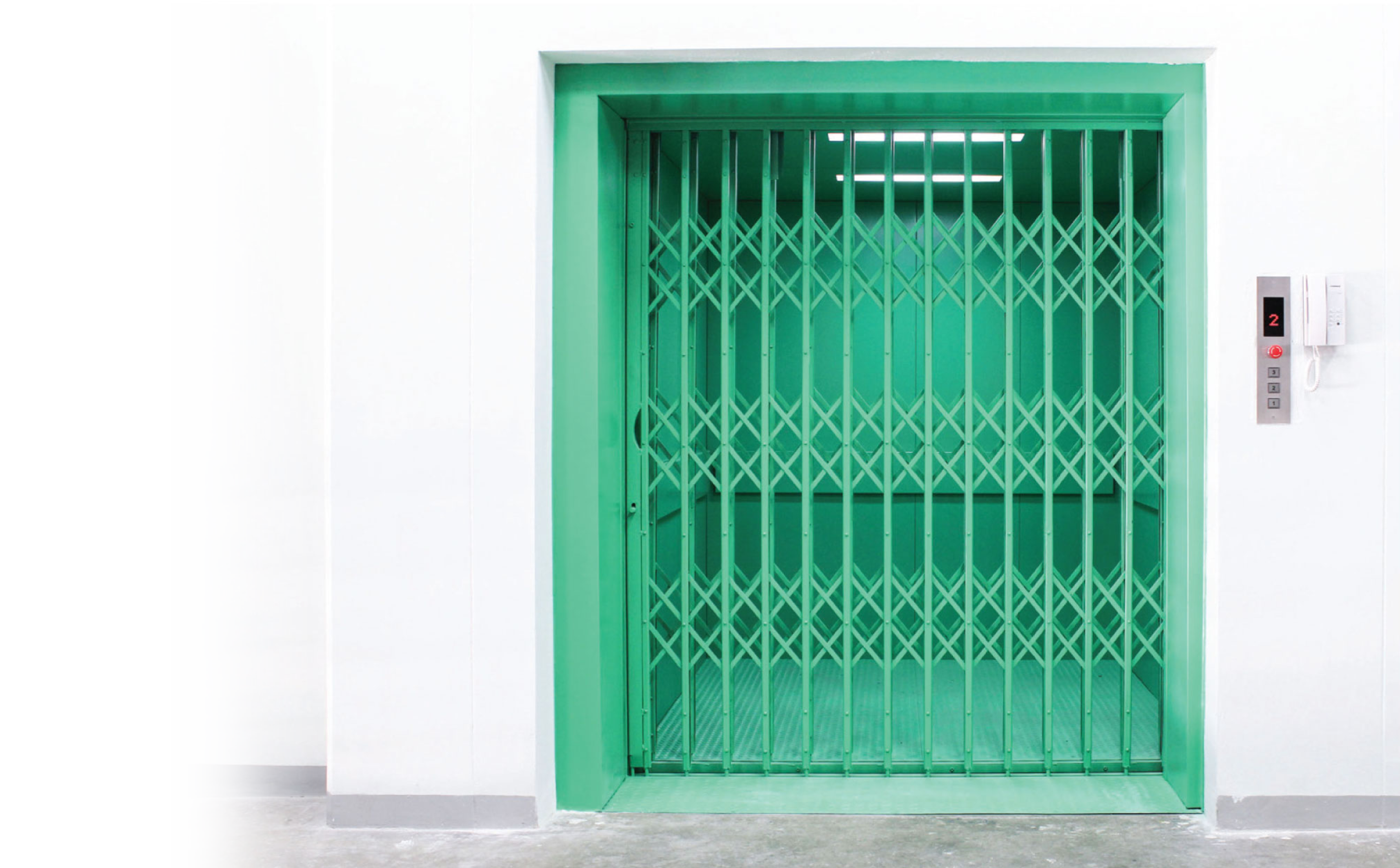

  5. Door Type
    ㆍExpendable DoorㆍSwing DoorㆍFolding DoorㆍRoller Shutter DoorㆍUp-sliding Door Pit
  6. Pit Depth (mm.)
    500
  7. Safety Feather
    ㆍOver speed governorㆍCar bufferㆍ Emergency stop botton + Overload holding stop
