อุปกรณ์เสริมพิเศษ
Other Attachments

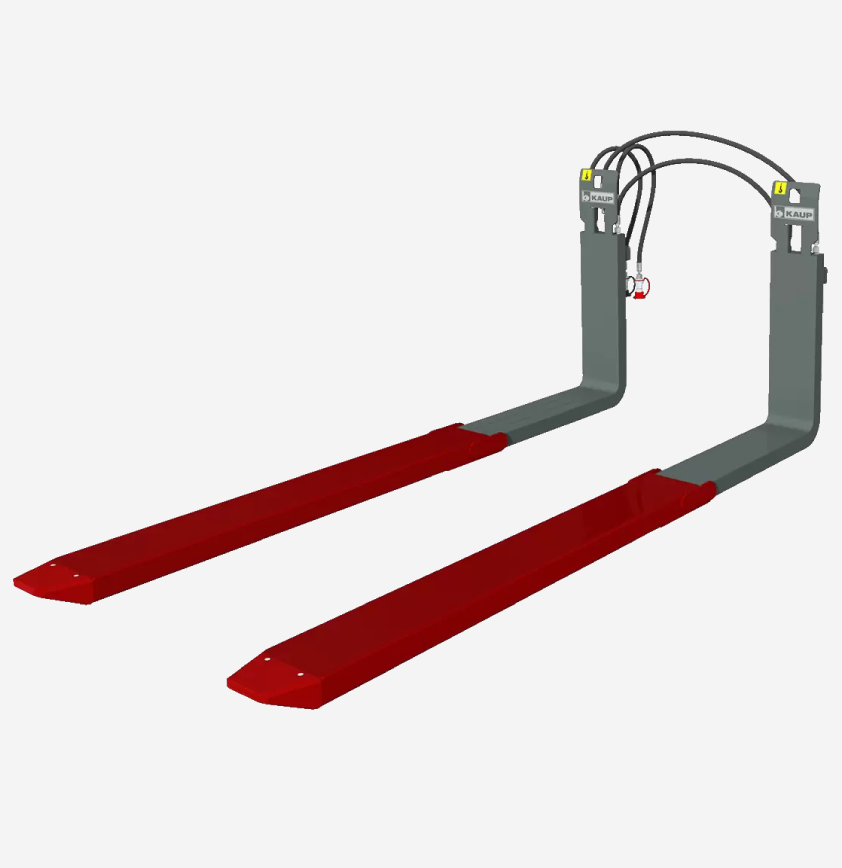

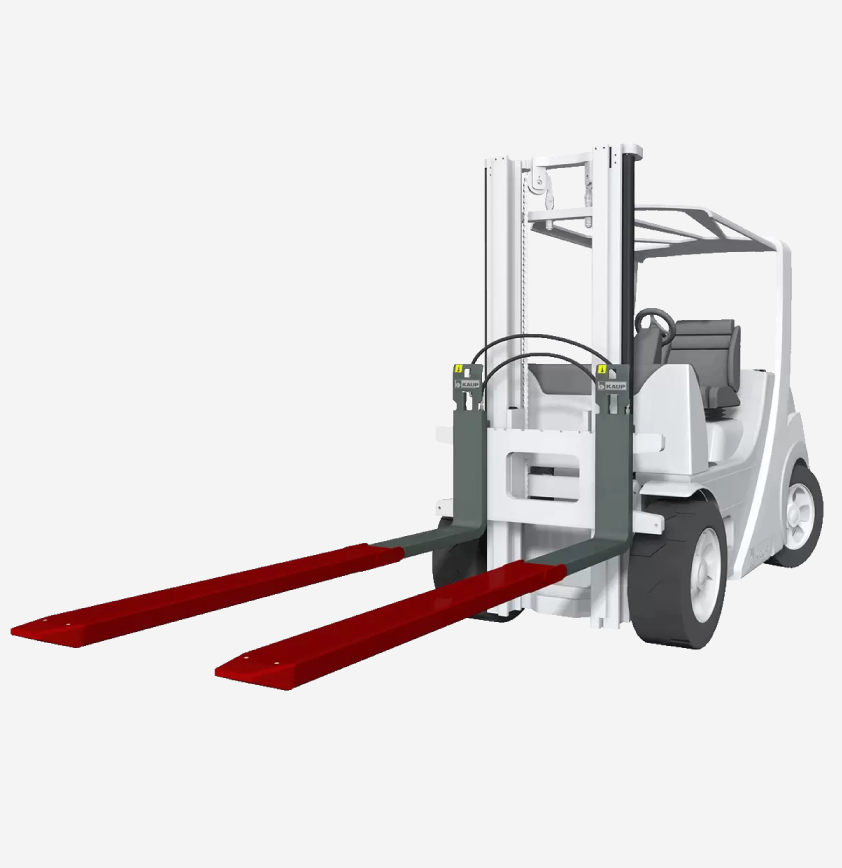

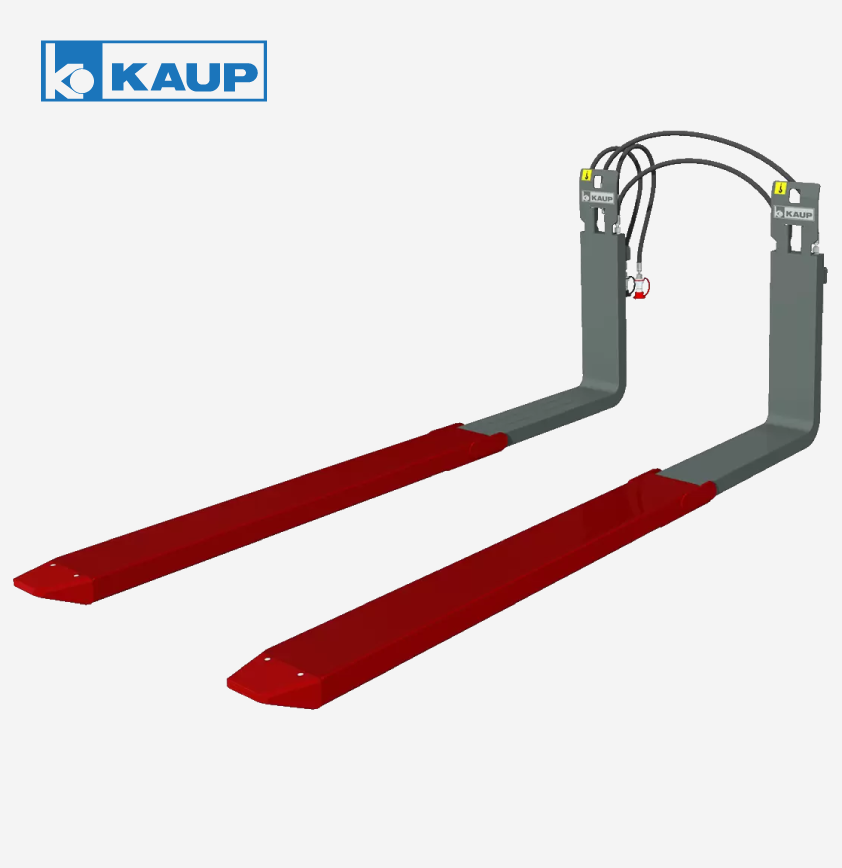

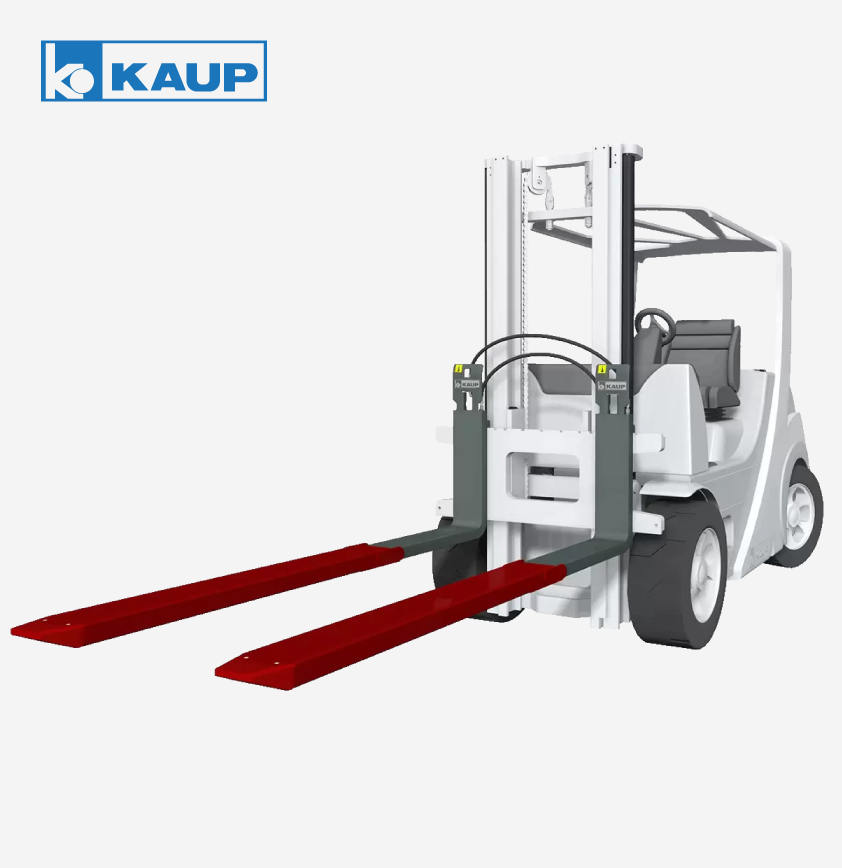

Telescopic Fork

A forklift attachment with hydraulic extendable/retractable forks, capable of extending the fork length by at least 1 meter. It is suitable for handling goods on Double Deep racks or on transport vehicles.

1. Model

   T180CT
2. Capacity (kg)

   2,000 - 5,000
3. LCD (mm)

   600 - 1,750
4. Extended Length (mm)

   800 - 2,350
5. Mouting ISO Class

   2 - 4
6. Load Stop Height (mm)

   400 - 550

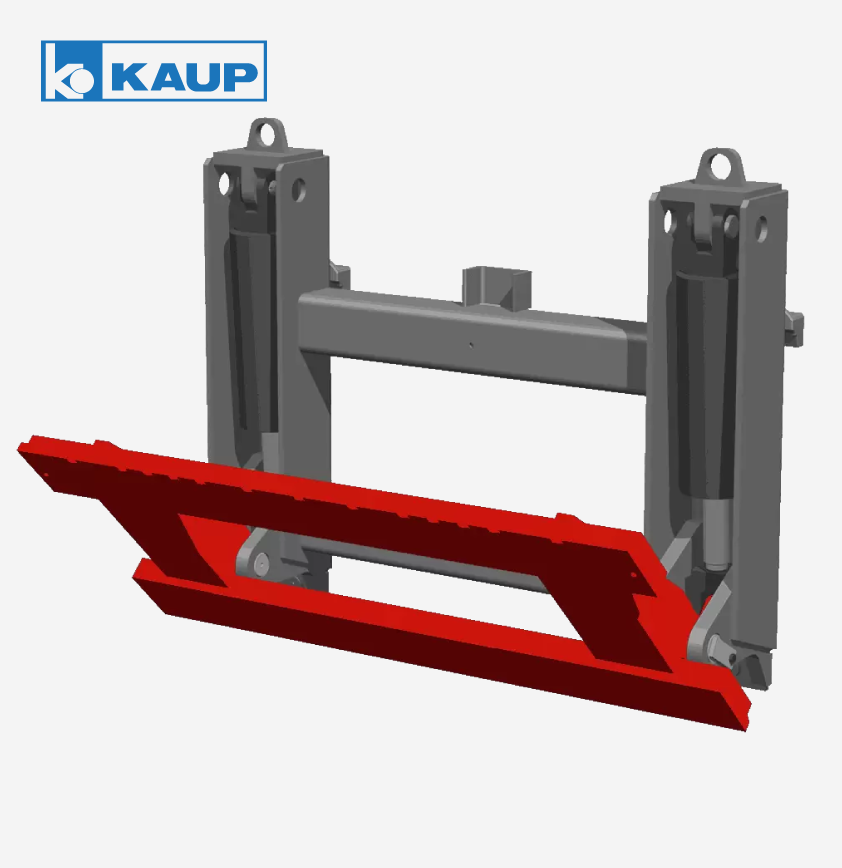

Tipping Carriage

Used for installation on a forklift carriage to adjust the position horizontally to the left or right without moving the forklift, allowing for easier and more precise placement of goods.

1. Model

   T130
2. Capacity (kg.)

   2,000 - 6,900
3. LCD (mm)

   600
4. Tipping Angle (Forward)

   60°
5. Carriage Width (mm)

   1,100
6. Mouting ISO Class

   2 - 4

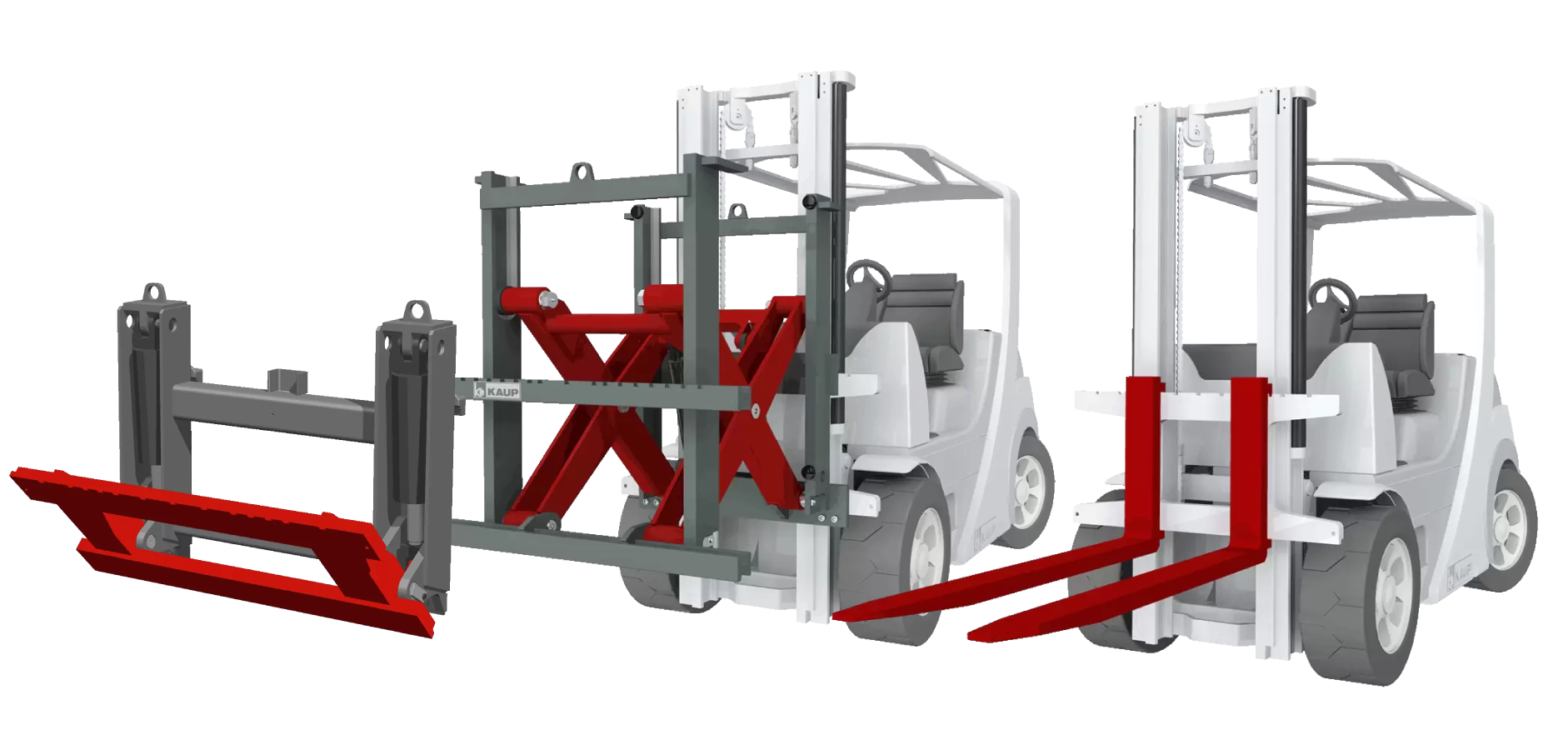

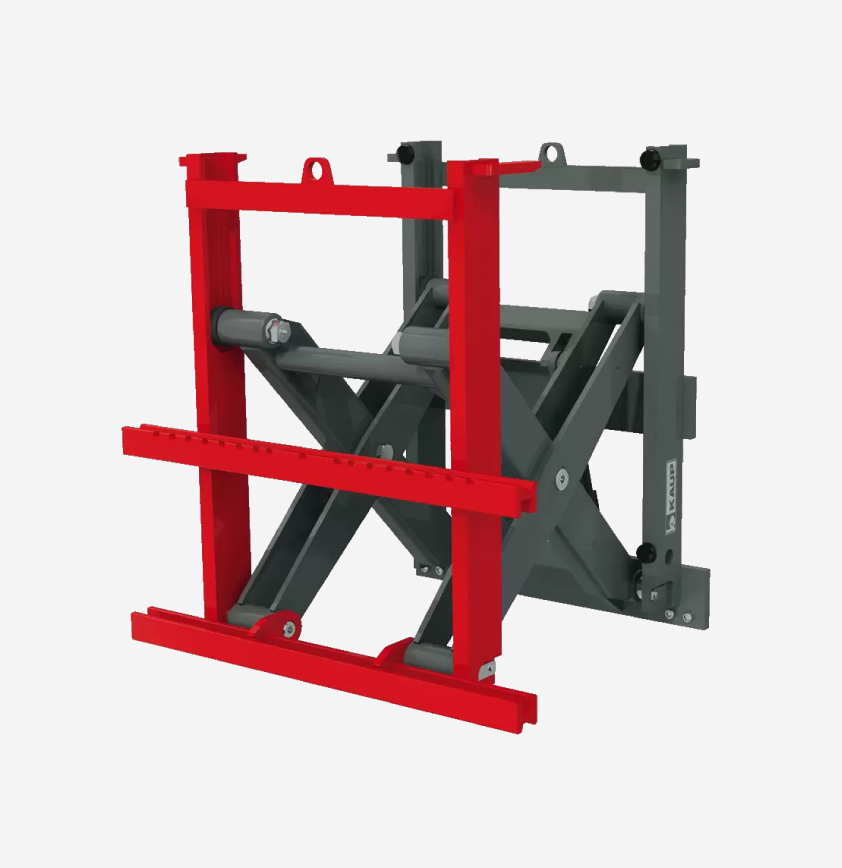

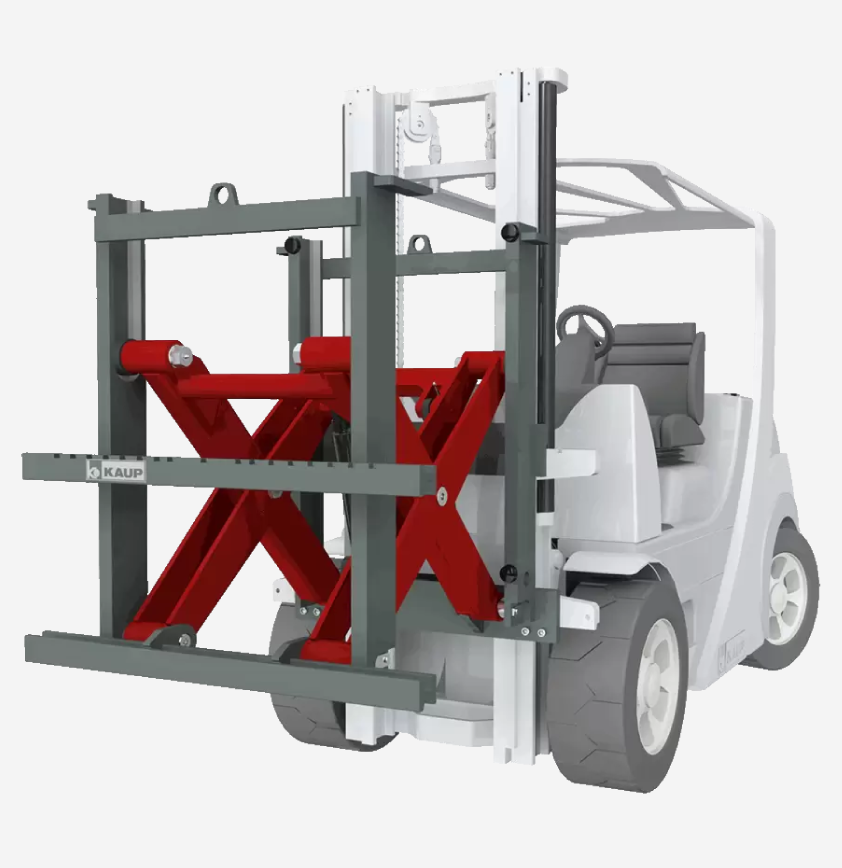

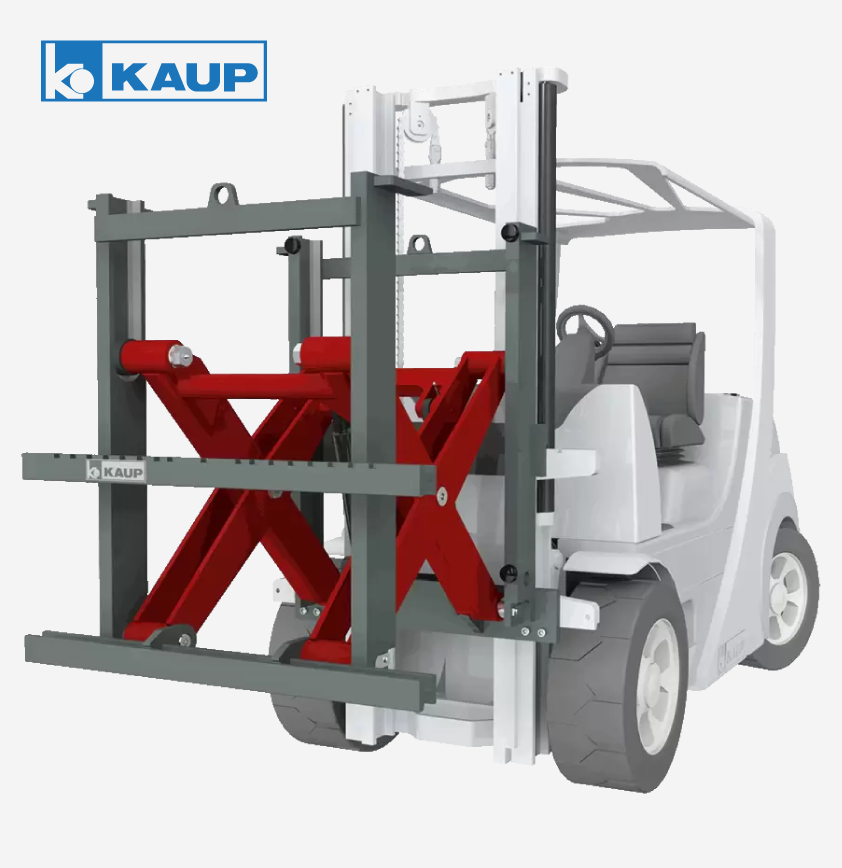

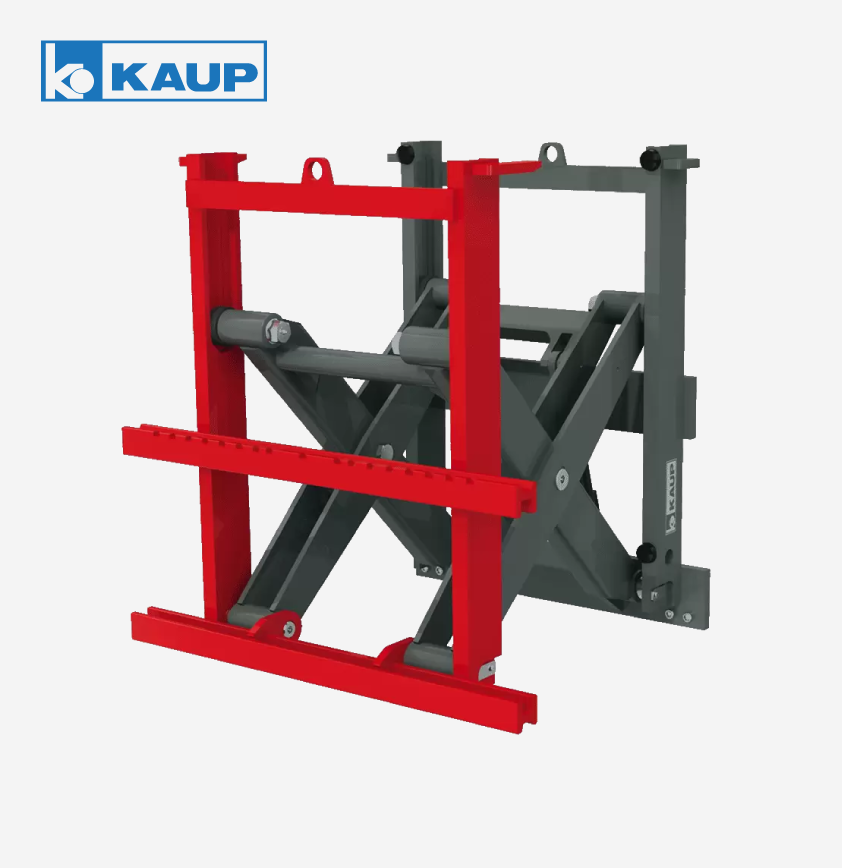

Pantographs

Suitable for handling goods in Double Deep racking, this attachment extends the forks by at least 1,000 millimeters.

1. Model

   T149
2. Capacity (kg)

   1,200 - 6,000
3. LCD (mm)

   600
4. Carriage Width (mm)

   1,040 - 1,500
5. Extended Length (mm)

   950 - 1,200
6. Mouting ISO Class

   2 - 4

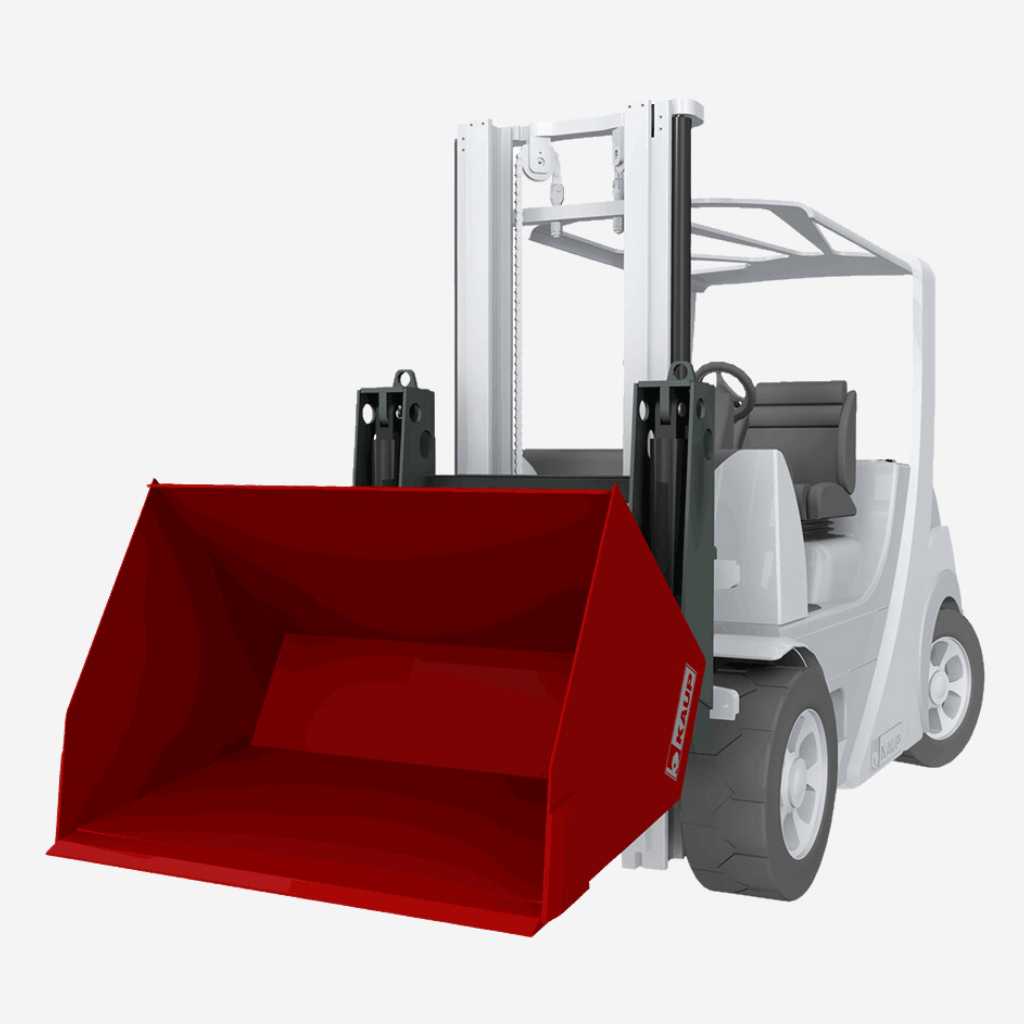

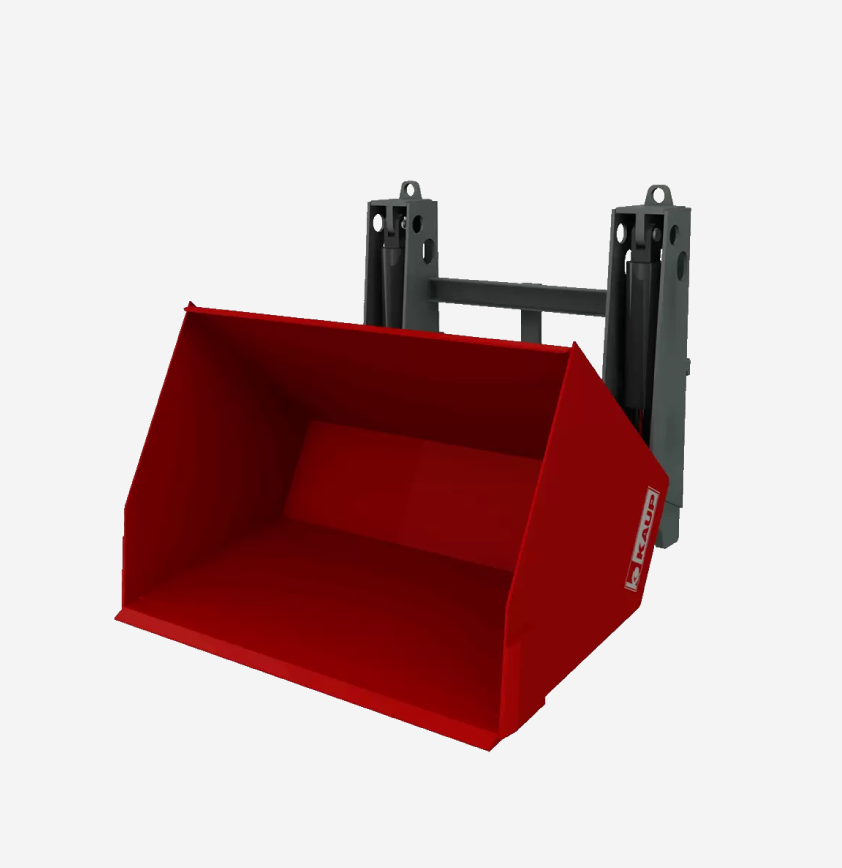

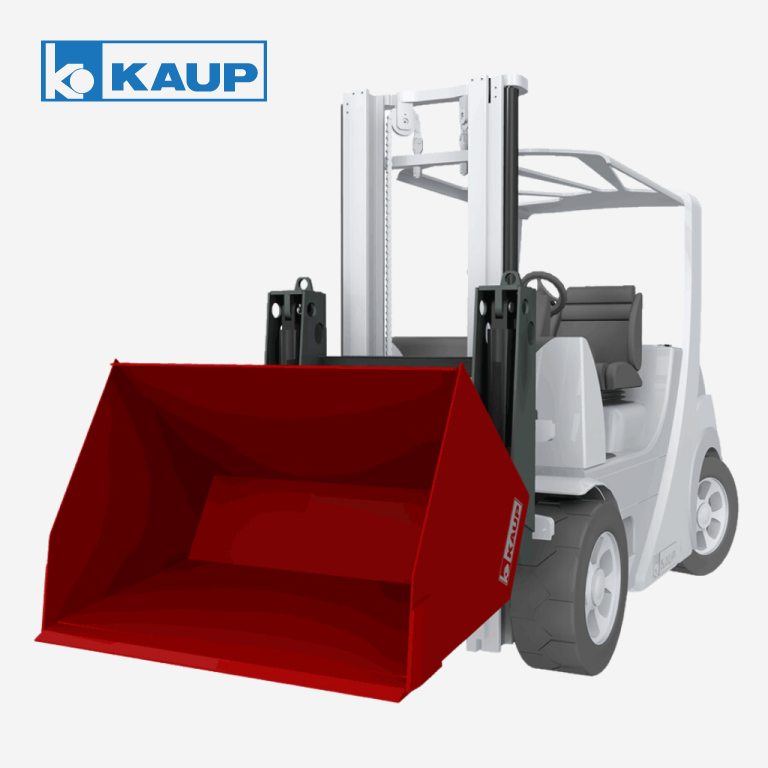

Loading Bucket

An attachment designed for scooping, loading, and dumping bulk materials such as sand, gravel, coal, grains, fertilizer, cement, or concrete. It can be mounted on a forklift and operates through the truck’s hydraulic system.

1. Model

   T1511
2. Capacity (kg.)

   1,760 - 7,920
3. Carriage Width (mm)

   1,300 - 2,800
4. Mouting ISO Class

   2 - 4

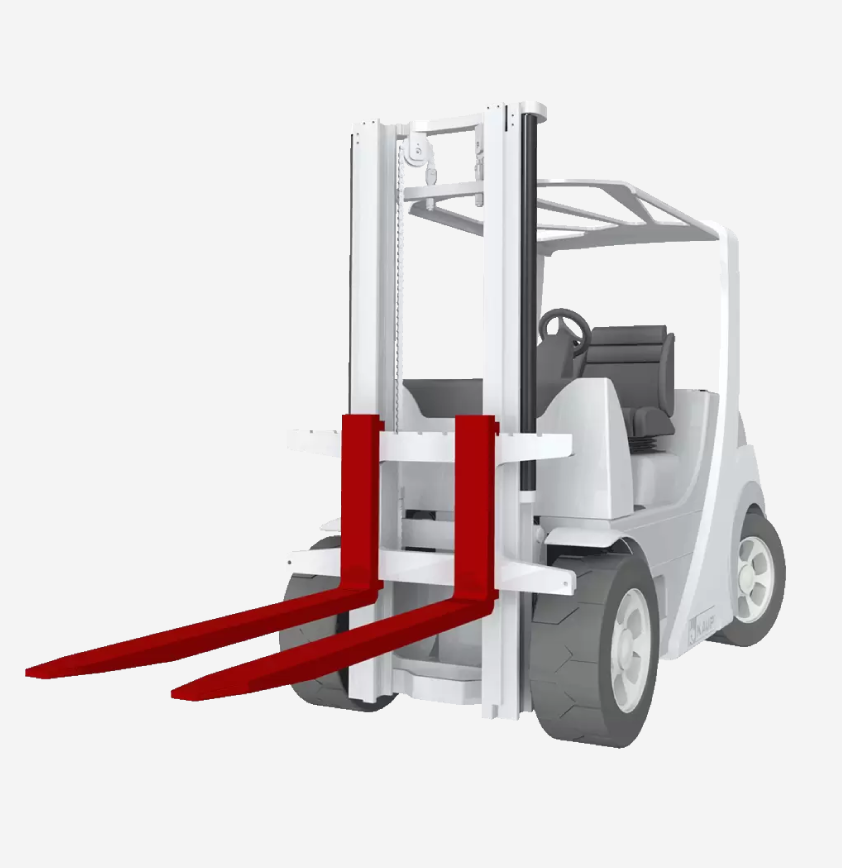

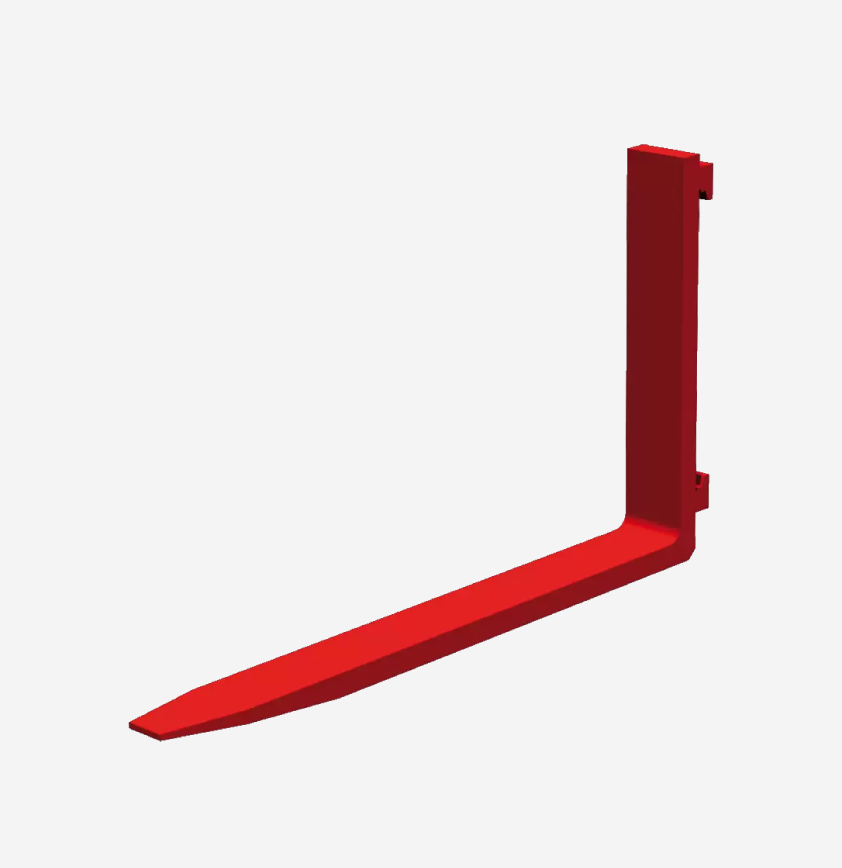

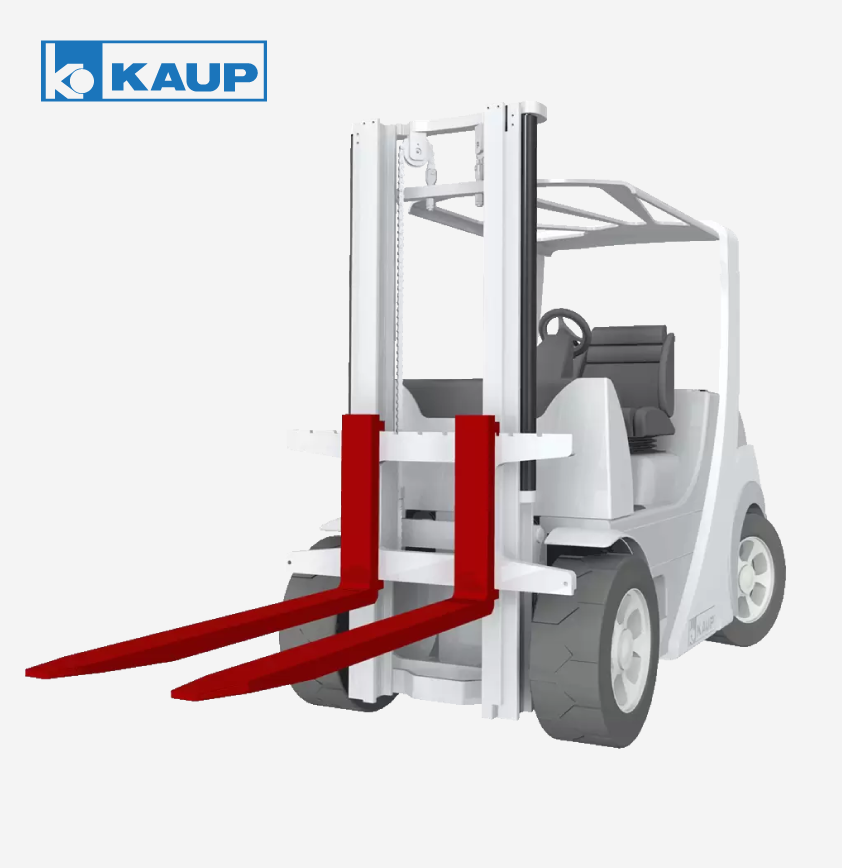

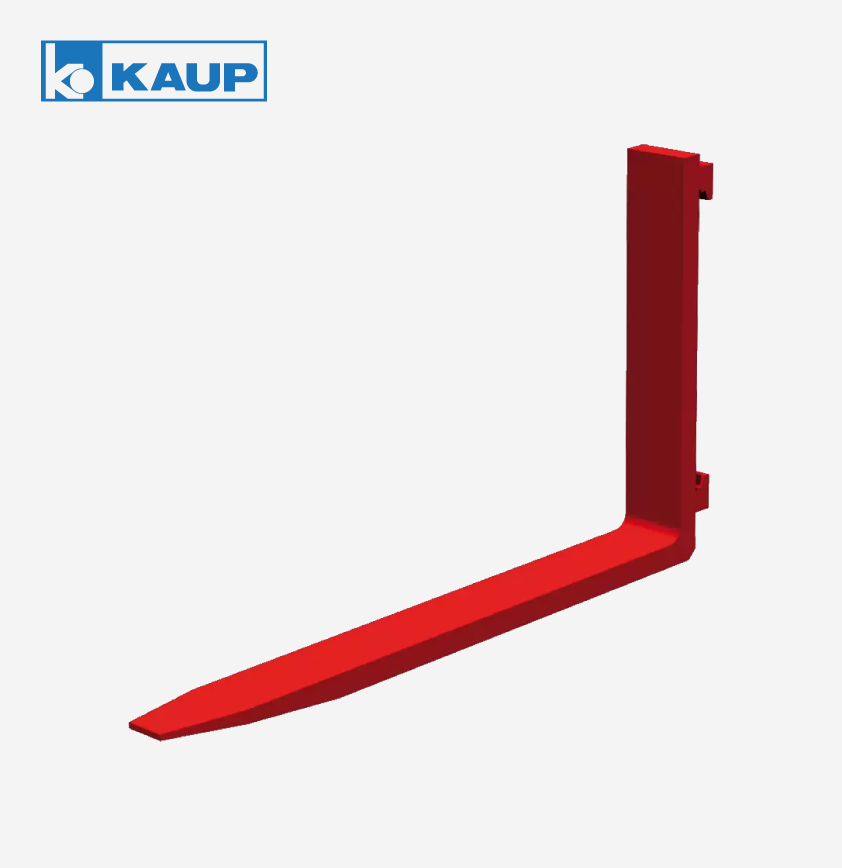

Hook-On Fork

Forks for forklifts equipped with hooks for attaching to the truck, designed for lifting and transporting standard pallets. Available in various lengths and sizes to suit different applications.

Fork Available Type

1. Model

   2.5T180 / 100 / 1070
2. Capacity (kg)

   2,500 kg / Pair @500 mm l.c.
3. Fork Cross Cut (mm) (E)

   120
4. Thickness (mm) (D)

   40
5. Length (mm) (G)

   1,070
6. Weight (kg / pair)

   90
7. Mouting ISO Class

   2A

1. Model

   2.5T180 / 120 / 1070
2. Capacity (kg)

   2,500 kg / Pair @600 mm l.c.
3. Fork Cross Cut (mm) (E)

   120
4. Thickness (mm) (D)

   40
5. Length (mm) (G)

   1,070
6. Weight (kg / pair)

   110
7. Mouting ISO Class

   2A

1. Model

   2.5T180 / 100 / 1220
2. Capacity (kg)

   2,500 kg / Pair @600 mm l.c.
3. Fork Cross Cut (mm) (E)

   120
4. Thickness (mm) (D)

   40
5. Length (mm) (G)

   1,220
6. Weight (kg / pair)

   124
7. Mouting ISO Class

   2A

1. Model

   4.3T180 / 125 / 1220
2. Capacity (kg)

   4,300 kg / Pair @600 mm l.c.
3. Fork Cross Cut (mm) (E)

   125
4. Thickness (mm) (D)

   50
5. Length (mm) (G)

   1,220
6. Weight (kg / pair)

   156
7. Mouting ISO Class

   3A

1. Model

   3.5T180 / 125 / 1070
2. Capacity (kg)

   3,500 kg / Pair @600 mm l.c.
3. Fork Cross Cut (mm) (E)

   125
4. Thickness (mm) (D)

   45
5. Length (mm) (G)

   1,070
6. Weight (kg / pair)

   134
7. Mouting ISO Class

   3A
