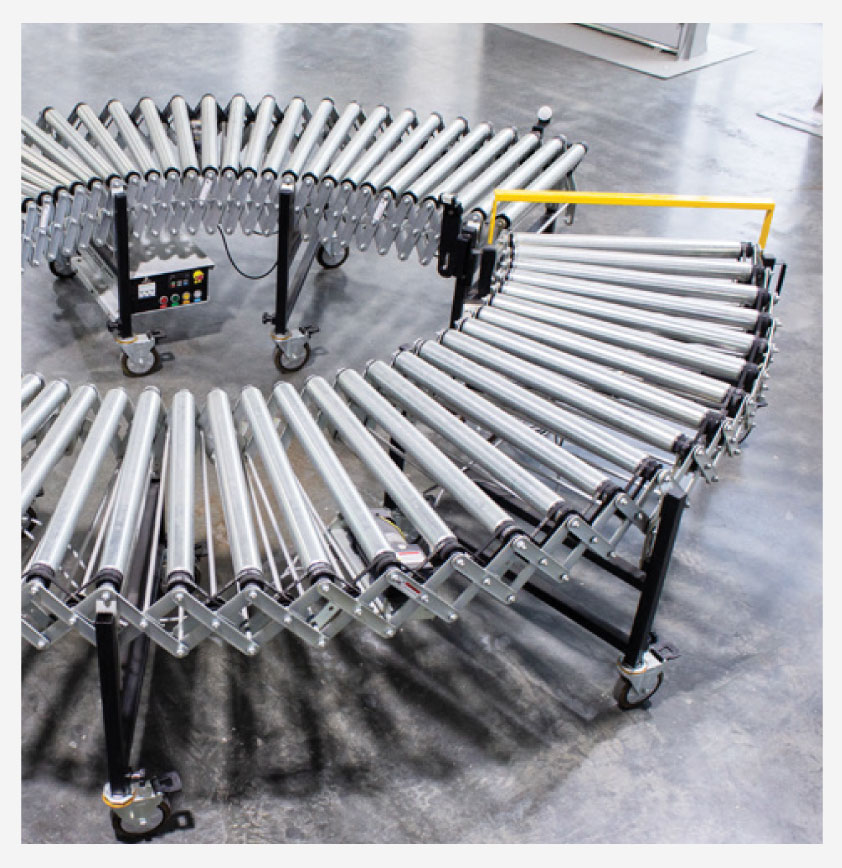

Flexible Roller Conveyor (Manual)

Designed for versatile product transport, the flexible roller conveyor accommodates a wide range of weights and sizes. Ideal for use in factories, warehouses, and distribution centers, this conveyor system ensures smooth and efficient movement of goods.

Flexible Roller Conveyor (Manual)

Flexible Roller Conveyor (Manual)
Flexible Roller Conveyor (Manual)

Conveyor belts are perfect for efficiently loading or unloading goods in containers, capable of supporting weights of up to 50 kilograms. Conveyor belts specialize at efficiently moving items inside a container. The direction of the belt movement can be easily adjusted, along with the height and length of the conveyor

  1. Model
    Manual System
  2. Retracted lenght (mm)
    2300, 4000
  3. Roller lange after fully extend (mm)
    6000, 10000
  4. Roller width (mm)
    600 mm
  5. Height (mm)
    700-900
  6. Load Capacity
    50 kg/m
  7. Meterial
    Carbon Steel

Flexible Roller Conveyor

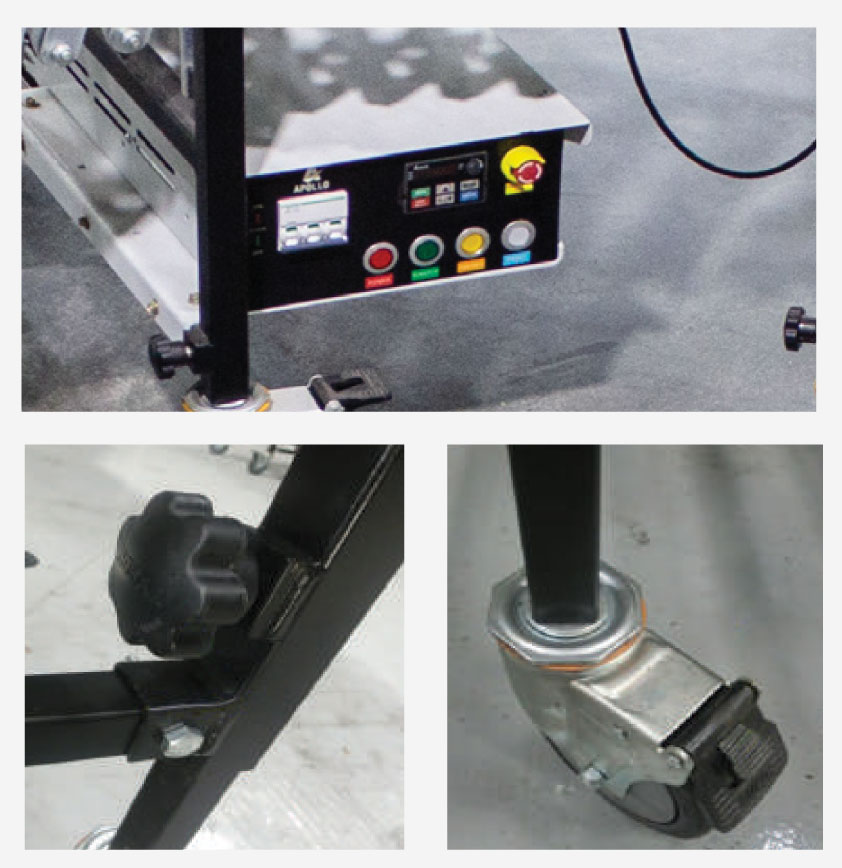

Equip with Start/Stop/ emmergency Stop at end of conveyor
Equip with Start/Stop/ emmergency Stop at end of conveyor
Each section uses one micro motor
Each section uses one micro motor
Electrical control cabinet to control the running of conveyor
Electrical control cabinet to control the running of conveyor
  1. Model
    R-4500
  2. Extended lenght L2 (mm)
    4780
  3. Retracted lenght L1(mm)
    1870
  4. Height(mm)
    700-1000
  5. Roller width(mm)
    670/870
  6. Roller Material
    Galvanized / Stainless Steel
  1. Model
    R-6500
  2. Extended lenght L2 (mm)
    6940
  3. Retracted lenght L1(mm)
    2700
  4. Height(mm)
    700-1000
  5. Roller width(mm)
    670/870
  6. Roller Material
    Galvanized / Stainless Steel
  1. Model
    R-10000
  2. Extended lenght L2 (mm)
    10000
  3. Retracted lenght L1(mm)
    3950
  4. Height(mm)
    700-1000
  5. Roller width(mm)
    670/870
  6. Roller Material
    Galvanized / Stainless Steel
  1. Model
    R-12000
  2. Extended lenght L2 (mm)
    12000
  3. Retracted lenght L1(mm)
    4780
  4. Height(mm)
    700-1000
  5. Roller width(mm)
    670/870
  6. Roller Material
    Galvanized / Stainless Steel
  1. Model
    R-15000
  2. Extended lenght L2 (mm)
    15600
  3. Retracted lenght L1(mm)
    6030
  4. Height(mm)
    700-1000
  5. Roller width(mm)
    670/870
  6. Roller Material
    Galvanized / Stainless Steel
