ลิฟท์จอดรถอัตโนมัติ
Auto Parking System

1. Vehicles Parked Per Unit

   2
2. Rated Capacity (kg)

   2,700
3. Dimension Car (mm)

   W 1,850 x L 5,000 x H 2,050
4. Drive mode

   Hydraulic Cylinder + Chains
5. Operation

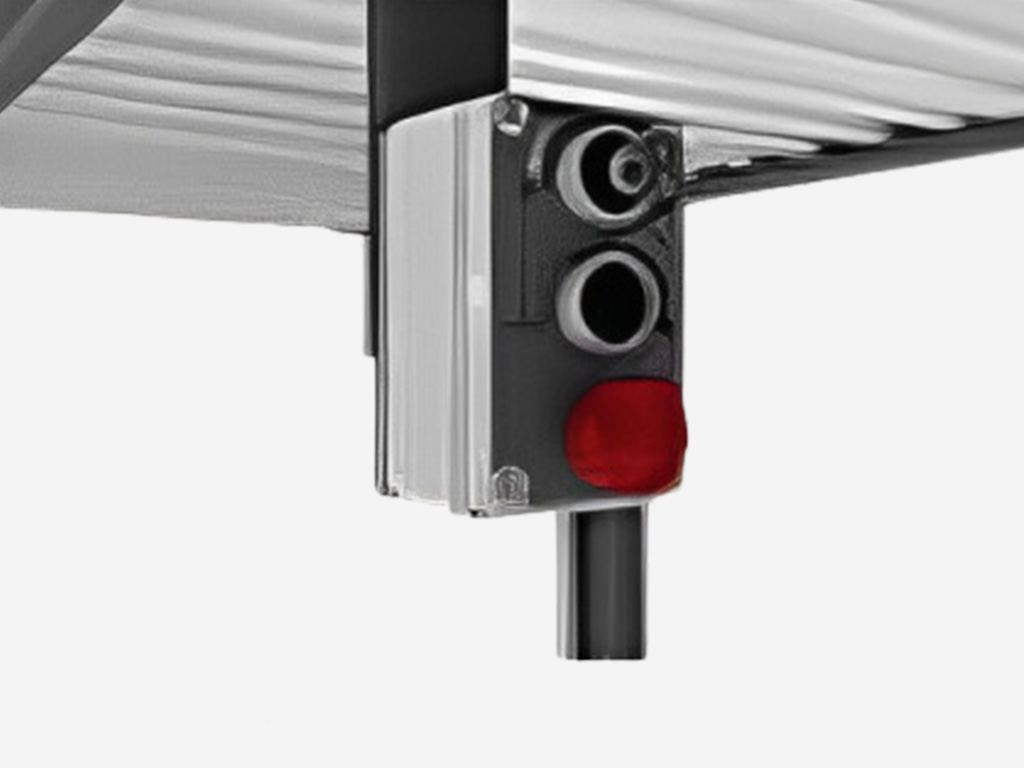

   Key Switch
6. Lifting Speed (s)

   < 50
7. Descending speed (s)

   < 35
8. Power Supply

   220-380V, 1/3P, 50/60Hz
9. Finishing

   Powder Coating

1. Limit switch at the top of the post. When the platform goes to the appointed height, it will automatically stop to avoid the wrong operation.
2. Pressure relief valve and pressure compensated flow control valve.

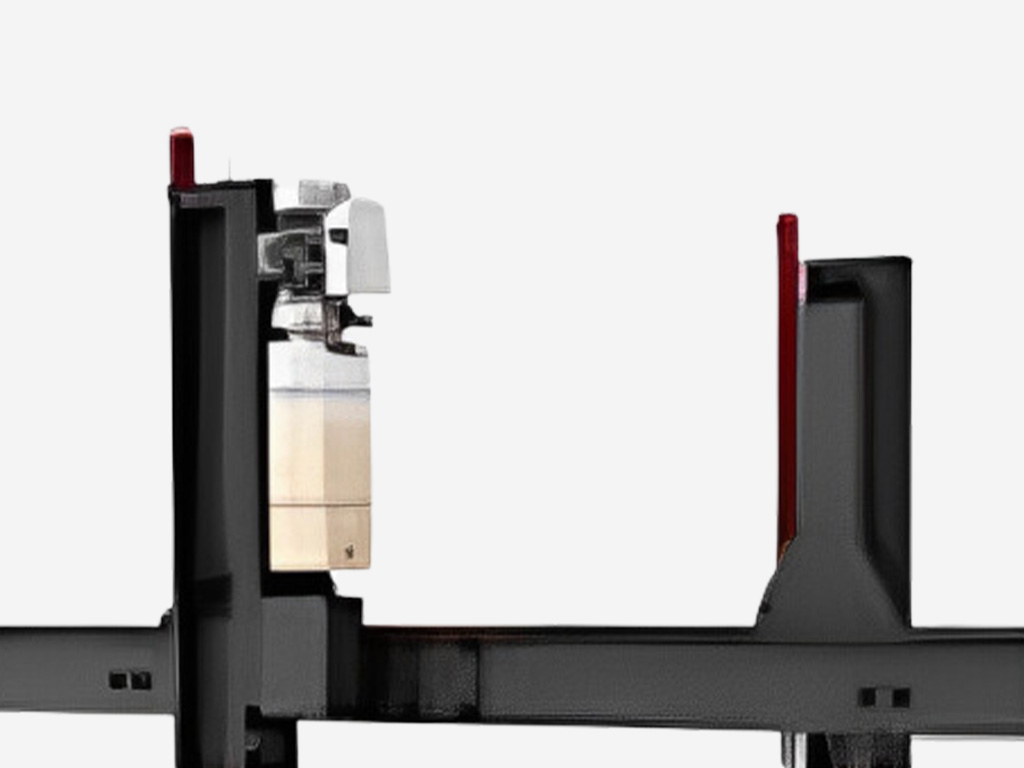

3. Overload protection device for the hydraulic power pack.
4. Auto locking system in case of electrical failure.
5. Electric protection for power overload or under voltage.

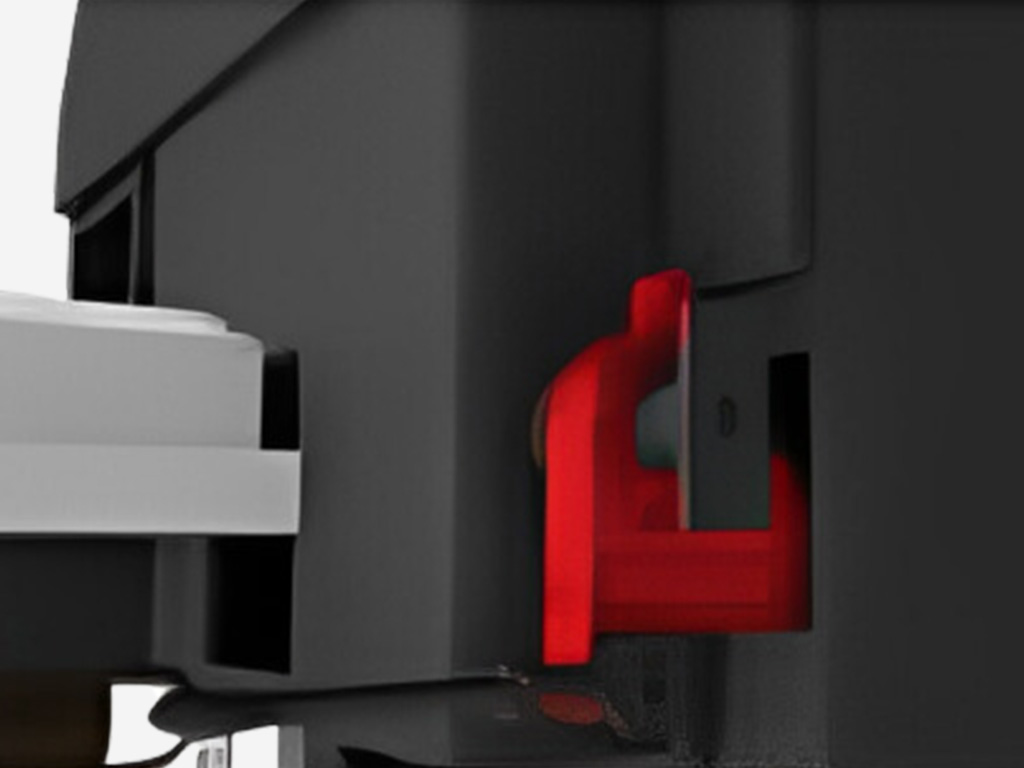

6. Mechanical anti-failing safety lock every 100 mm on the post.
7. Photocell sensor available to check under car and avoid trespass.
8. Synchronization chain.
9. 24V. electric lock release has no harm to the operator.
10. Emergency stop button.

Feature

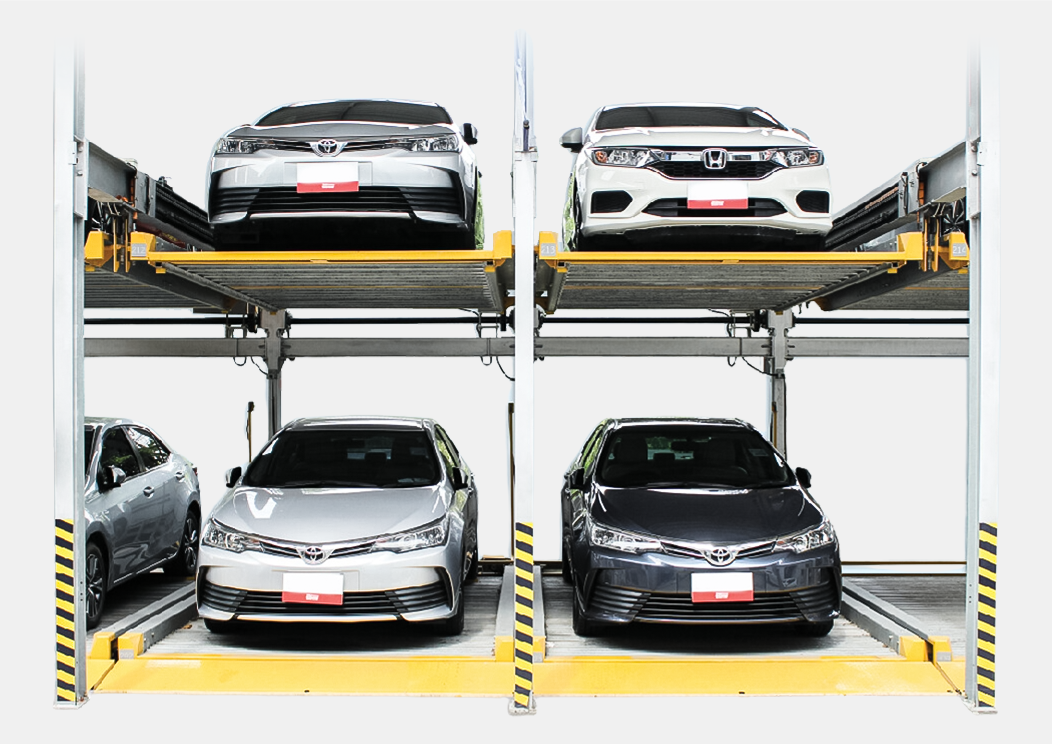

Puzzle Parking Lift

A semi-automatic parking system provides a convenient and space-efficient solution for parking vehicles, enabling developers to maximize parking availability for residents. This system incorporates multiple layers of platforms that rotate each vehicle into its designated space. It is an efficient solution well-suited for new apartment and condo owners who face limited parking options.

1. Vehicles Parked Per Unit

   2 ,5,15
2. Rated Capacity (kg)

   2,500
3. Dimension Car (mm)

   W 1,850 x L 5,000 x H 2,050
4. Drive mode

   Hydraulic Cylinder + Steel Cable
5. Operation

   Button, IC cards, or manual, with LED display
6. Hydraulic Pump Power (Kw)

   4,11,15
7. Lifting Speed (s)

   8-12 , 15-18 , 22-28
8. Sliding Speed (m/min)

   7.5
9. Power Supply

   220-380V, 1/3P, 50/60Hz
10. Finishing

    Powder Coating or Galvanized

1. Photoelectric detection system for detecting vehicles exceeding height limits and preventing unauthorized entrance of people and cars.
2. Fixed style anti-falling frame device.
3. Sound and light warning devices.
4. Safety warning plate.
5. Oil cylinder top limit switch device.
6. Car blocking device on platform.
7. Limit switch device.
8. Emergency stop device.
9. Hydraulic protection device.

Feature
