อุปกรณ์ยกม้วนฟิล์ม
Work Positioners

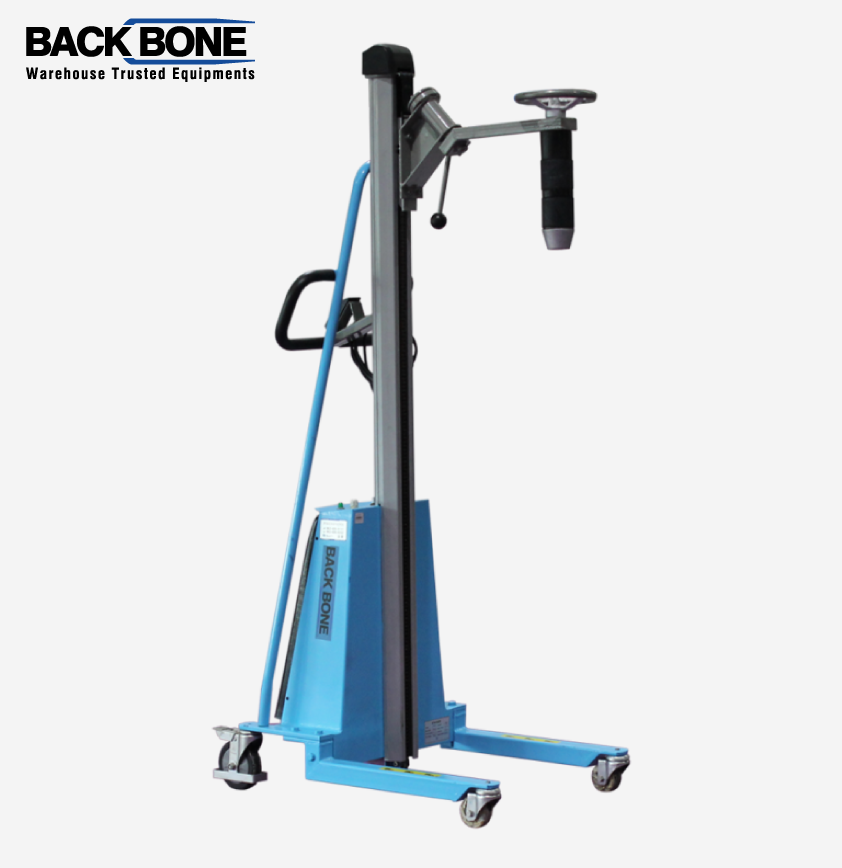

Work Positioners

An electric film roll lifting device designed for easy and quick vertical movement. The adjustable core adapts to various film roll sizes, making it compatible with all sizes of film. It can support up to 200 kilograms and offers free movement for versatile use.

1. Work Positioners
2. Max. Capacity (kg)

   200
3. Min. / Max. Platform Height (mm)

   130 / 1500
4. Leg Height (mm)

   110
5. Spindle Diameter (mm)

   75
6. Front Wheel Diameter

   Ø75
7. Rear Wheel Diameter

   Ø125 (PU)
8. Power Unit

   24V / 200W
9. Net WEight (kg)

   78

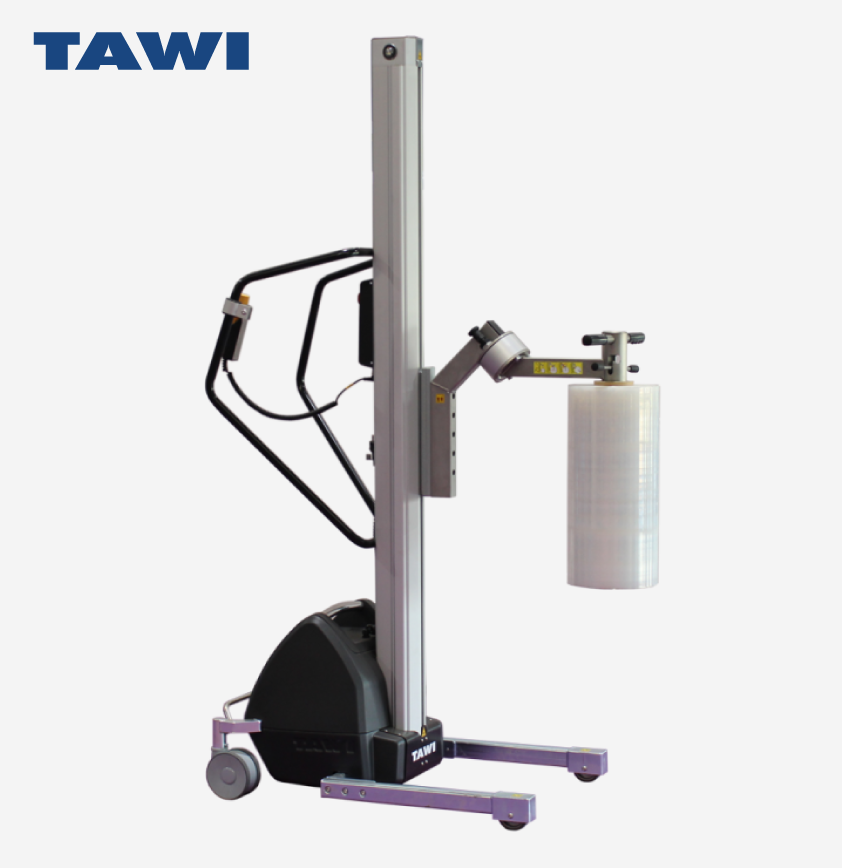

Roll Lifting Trolle

1. Roll Lifting Trolle
2. Lifting Capacity (kg)

   140
3. Battery

   2 x 12V 17Ah
4. Lifts Per Charge

   140kg x 1m x100 times
5. Brake System

   Central Brake With Directional Lock
6. Lifting Speed Fast / Slow

   0.1m/s - 0.05m/s
7. Stroke (mm)

   840 / 1,390 / 1,940
8. Battery Charger

   100 - 240V, Grounded 50 - 60Hz
9. Front Wheels

   Fixed
10. Overload Protection

    Incorporated In Circuit Load
